Remove/install power window switch for rear side window - AR67.39-P-4180SC

MODEL 216.3

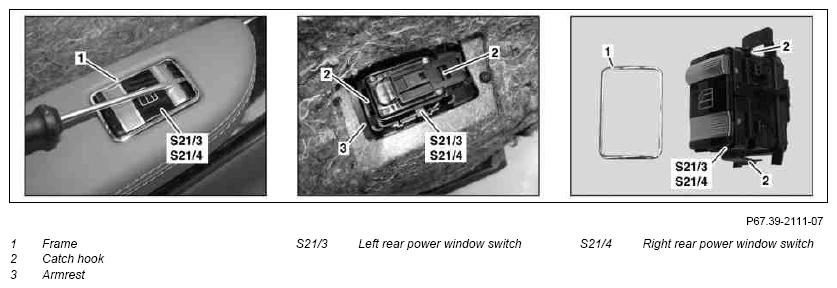

Fig 1: Identifying Left Rear/ Right Rear Power Window Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left or right side paneling in rear.		see AR68.30-P-4780SC
2	Unclip frame (1) on left rear power window switch (S21/3) or right rear power window switch (S21/4) with suitable screwdriver.	Carefully unclip frame (1) to prevent breaking frame (1).
3	Release catch hook (2) at bottom of left rear power window switch (S21/3) or right rear power window switch (S21/4).
4	Press left rear power window switch (S21/3) or right rear power window switch (S21/4) toward inside through armrest (3) and remove.	Installation:  The catch hooks (2) on the left rear power window switch (S21/3) or right rear power window switch (S21/4) should arrest audibly in the armrest (3).
5	Install in the reverse order
