Remove/install power window motor for rear side window - AR67.39-P-4160SC

MODEL 216.3

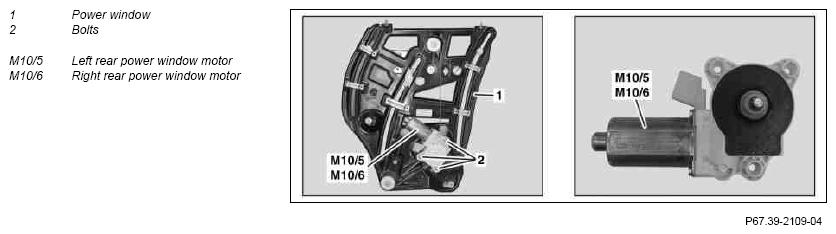

Fig 1: Identifying Left/Right Power Window Motor Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove power window (1) on left or right rear side window.		see AR67.39-P-4150SC
2	Remove bolts (2)
3	Remove left rear power window motor (M10/5) or right rear power window motor (M10/6) from power window (1).	Installation: Lubricate gears on left rear power window motor (M10/5) or right rear power window motor (M10/6).
3		Lock cylinder grease spray 50 ml	see *BR00.45-Z-1012-06A
4	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-06A	Lock cylinder grease spray 50 ml	A 002 989 06 51
