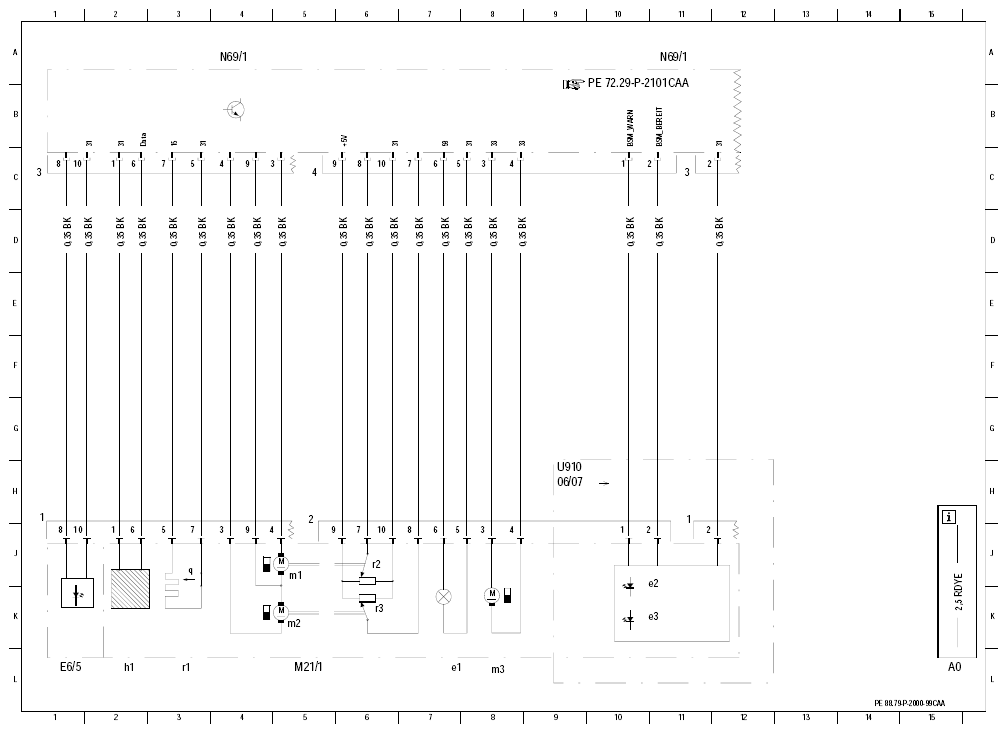

| A0 |
Explanation of color codes |
15 L |
| E6/5 |
Left exterior mirror turn signal lamp |
1 L |
| M21/1 |
Left electrically adjustable and heated exterior mirror |
2 L |
| M21/1 |
Left electrically adjustable and heated exterior mirror |
3 L |
| M21/1 |
Left electrically adjustable and heated exterior mirror |
5 L |
| M21/1e1 |
Left outside mirror ambient lamp |
7 L |
| M21/1m1 |
Mirror up/down adjustment motor |
5 J |
| M21/1m2 |
Mirror in/out adjustment motor |
4 K |
| M21/1m3 |
Mirror fold-in motor |
8 L |
| M21/1r2 |
Mirror up/down adjustment potentiometer |
6 J |
| M21/1r3 |
Mirror in/out adjustment potentiometer |
6 K |
| N69/1 |
Left door control module |
4 A |
