Remove/install remote trunk closing control unit - AR88.50-P-5300SX
MODEL 216.3, 221.0 /1 with CODE (881) Remote trunk closing (RTC [HDFS])
Illustrated on model 221 before YoM 2008/1
MODIFICATION NOTES
| 18.3.09 | Checking HDS control module for current flashware | Step 8 |
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | see AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | see AH54.00-P-0001-01A | ||
| 1 | Remove spare tire well paneling | On model 216 | see AR68.30-P-4600SX |

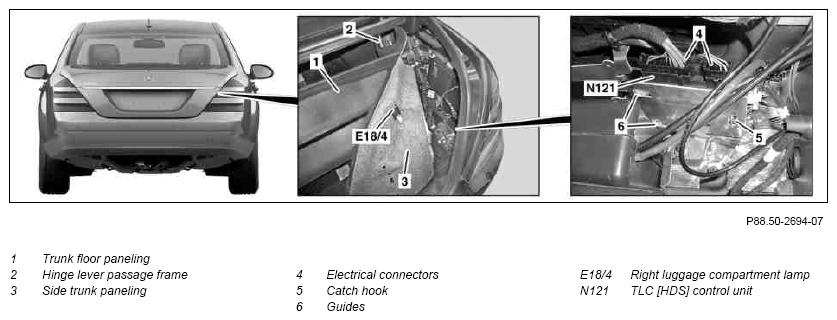

| 2 | Loosen right side paneling in trunk (3) and pivot to side until TLC control unit (N121) is accessible | Vehicles without code (Z07) Top protection | see AR68.30-P-4600SX |
| Vehicles with code (Z07) Top protection | AR68.30-P-4600SXS | ||
| 3 | Separate electrical connectors (4) | ||
| 4 | Unclip catch hook (5) and remove TLC control unit (N121) | ||
| 5 | Remove cover on fuse and relay module from rear SAM control module with fuse and relay module | Only when replacing TLC control unit (N121) on model 221 up to vehicle identification end number 026743. | |
| 6 | Change fuse assignment for TLC control unit (N121) on rear SAM control unit with fuse and relay module | Only when replacing TLC control unit (N121) on model 221 up to vehicle identification end number 026743. |
AR54.15-P-1255-08SX |
| Fig 2 | |||
| Fig 3 | |||
| 7 | Install in the reverse order | ||
| 8 | Check HDS control unit (N121) for current flashware | Only when replacing TLC control unit (N121). | |
| Connect STAR DIAGNOSIS and read out fault memory | see AD00.00-P-2000-04A | ||
| 9 | Normalize remote trunk closing | Only when replacing TLC control unit (N121). |
