Remove/install outside mirror trim - AR88.70-P-9040CY

MODEL 204.0## /2## #A as of 213187

MODEL 204.0## /2## #F as of 231783

MODEL 204.0## /2## #R as of 048423

MODEL 207.### ## as of 032555

MODEL 216 as of 1.6.09

MODEL 221 as of 1.6.09

MODEL 216, 221 with CODE (800) Model year 2010

MODEL 204.3 /9, 212, 218, 246

Illustrated on model 204.9

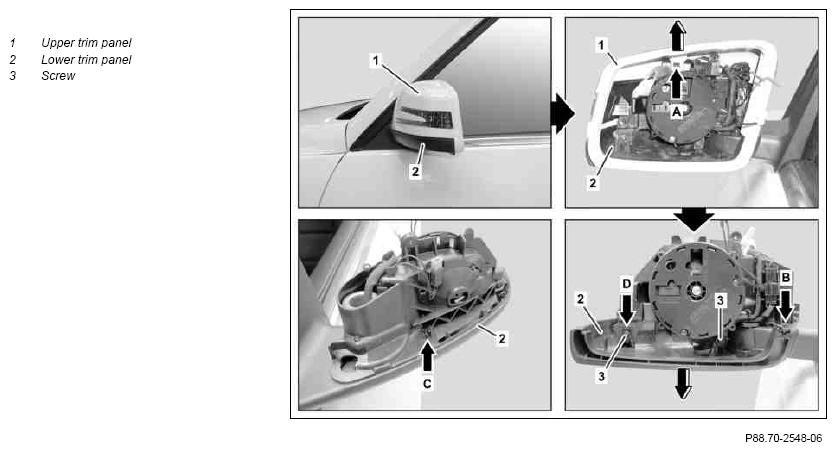

Fig 1: Identifying Outside Mirror Trim Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove mirror glass on left and right outside mirror	Model 204, 207, 212, 218	AR88.70-P-9020CW
		Model 216, 221	see AR88.70-P-9020TX
		Model 246	AR88.70-P-9020NKB
2	Lift catch hook (arrow) and remove upper paneling (1) upward in direction of arrow
3	Remove screws/bolts (3)
4	Unlock catch hook (arrow B)
5	Unlock catch hook (arrow C) and retaining bracket (arrow D) and remove lower paneling (2) downward	The outside mirror ambient lamp is integrated into the bottom paneling (2) which must be pulled out of the frame before removing the bottom paneling (2).
6	Install in the reverse order
