Remove/install mirror lens - AR88.70-P-9020TX

MODEL 211.0 /2 /6 as of 1.6.06, 219, 216, 221

Shown on model 219

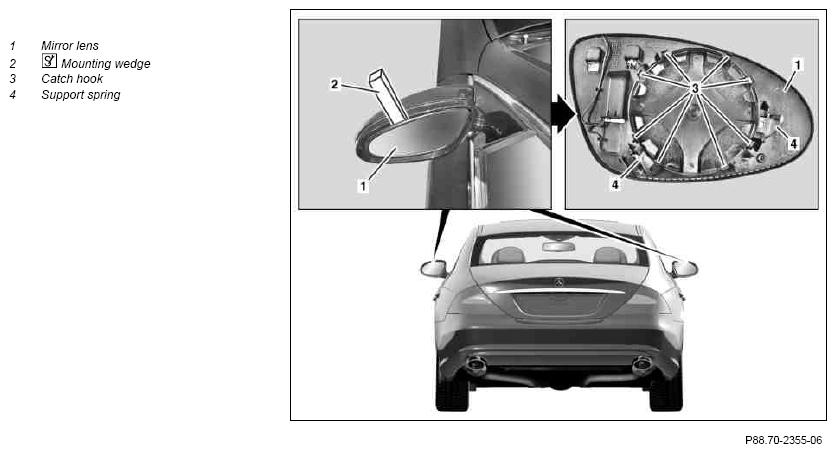

Fig 1: Identifying Mirror Lens Remove/Install Components - Shown On Model 219

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens.	Wear protective gloves and safety glasses.	see AS60.00-Z-0008-01R
1	Tilt mirror lens (1) out upward
2	Press mirror glass (1) off of mirror glass adjustment drive with mounting wedge (2)	Installation:  Clip mirror lens (1) into glass adjustment drive from bottom upward. Ensure that catch hook (3) arrests completely.	Fig 2
3	Disconnect electrical connectors and remove mirror lens (1)
4	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)
