Remove/install hydraulic pump for trunk lid remote control - AR88.50-P-5070SX
MODEL 216.3, 221.0 /1 with code (881) Remote trunk closing (RTC [HDFS])

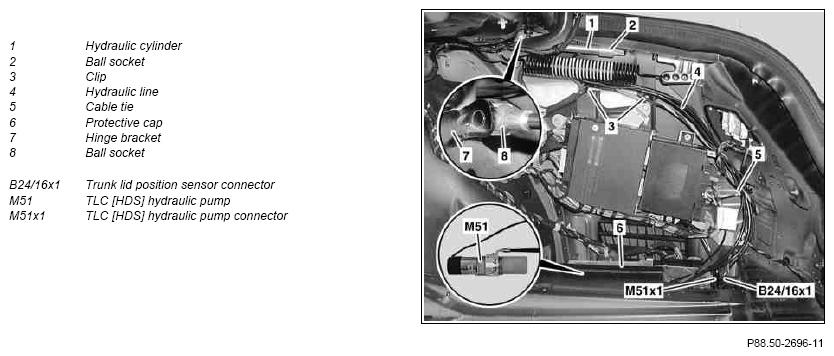

Illustrated on model 221
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | see AS00.00-Z-0011-01A | |
| Notes on avoiding damage to electronic components due to electrostatic discharge | see AH54.00-P-0001-01A | ||
| 1 | Remove right side paneling in trunk | Vehicles without code (Z07) Top protection | see AR68.30-P-4600SX |
| Vehicles with code (Z07) Top protection | AR68.30-P-4600SXS | ||
| 2 | Disconnect HDS hydraulic pump connector (M51x1) | ||
| 3 | Disconnect trunk lid position sensor connector (B24/16x1) | ||
| 4 | Expose hydraulic line (4). | ||
| 5 | Remove protective cap (6) together with TLC hydraulic pump (M51) from bracket. | ||
| 6 | Press ball socket (8) off of hinge lever (7) and ball socket (2) off of rear fender | ||
| 7 | Remove hydraulic cylinder (1) together with hydraulic line (4) and lay down to side. | ||
| 8 | Remove TLC hydraulic pump (M51) from protective cap (6). | ||
| 9 | Remove TLC hydraulic pump (M51) together with hydraulic line (4) and hydraulic cylinder (1). | ||
| 10 | Install in the reverse order | ||
| 11.1 | Denormalize remote trunk closing with STAR DIAGNOSIS, then normalize remote trunk closing | Only when replacing HDS hydraulic pump (M51). |
|
| Connect STAR DIAGNOSIS and read out fault memory | see AD00.00-P-2000-04A |
