Remove/install complete outside mirror - AR88.70-P-9000CW
MODEL 204, 207, 212, 216, 221
Shown on driver side on model 204 up to model year 2011
| Remove/install | |||

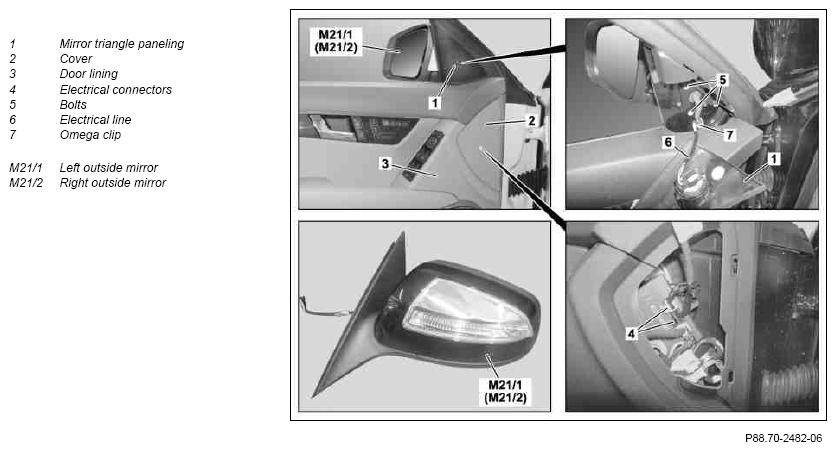

| 1 | Unclip left and right mirror triangle paneling (1) and allow electrical line (6) to hang down | Fig 2 | |
| 2 | Remove rear soundproofing from cover on mirror triangle (1) | In model 204, 216, 221 | |
| 3 | Unclip window frame paneling in area of threaded connection on left outside mirror (M21/1) or right outside mirror (M21/2) | On model 204.9 | |
| 4 | Unclip cover (2) from door lining (3) and remove | Fig 2 | |
| 5 | Disconnect electrical connectors (4) | ||
| 6 | Remove omega clip (7) | On model 204, 212 | |
| 7 | Protection door lining (3) in area of bolts (5) against damage with adhesive tape | In case of model 207 | |
| 8 | Remove bolts (5) and remove left outside mirror (M21/1) or right outside mirror (M21/2) | ||
| 9 | Install in the reverse order |
