Disassemble/assemble outside mirror - AR88.70-P-9030TX

MODEL 216 as of 1.6.09

MODEL 216 with CODE (800) Model year 2010

MODEL 221 as of 1.6.09

MODEL 221 with CODE (800) Model year 2010

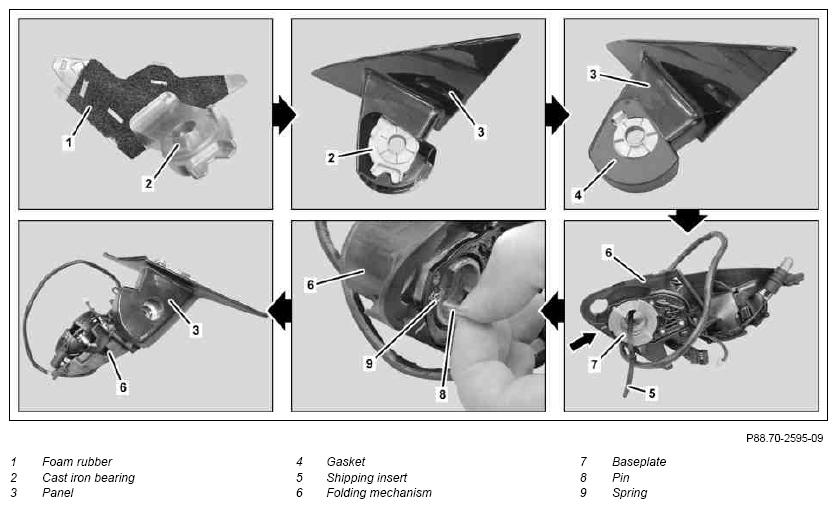

Fig 1: Identifying Outside Mirror Disassembled And Assembled Components (1 Of 4)
G07639007Courtesy of MERCEDES-BENZ USA

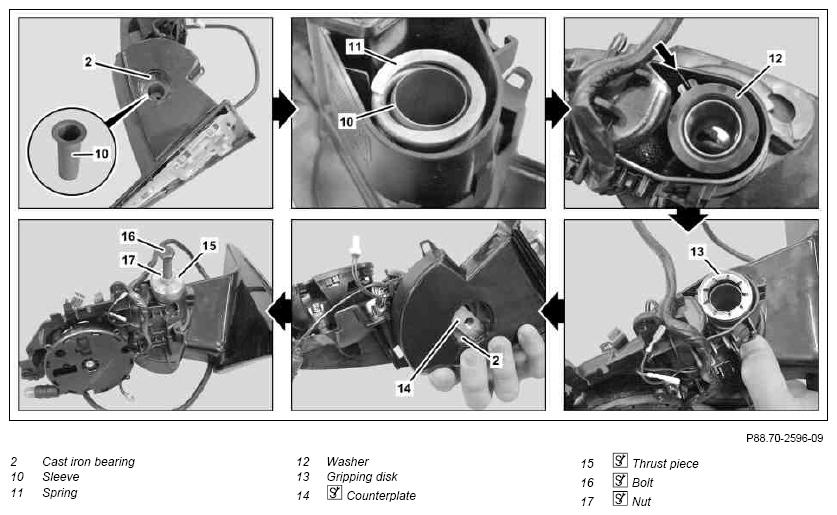

Fig 2: Identifying Outside Mirror Disassembled And Assembled Components (2 Of 4)
G07639008Courtesy of MERCEDES-BENZ USA

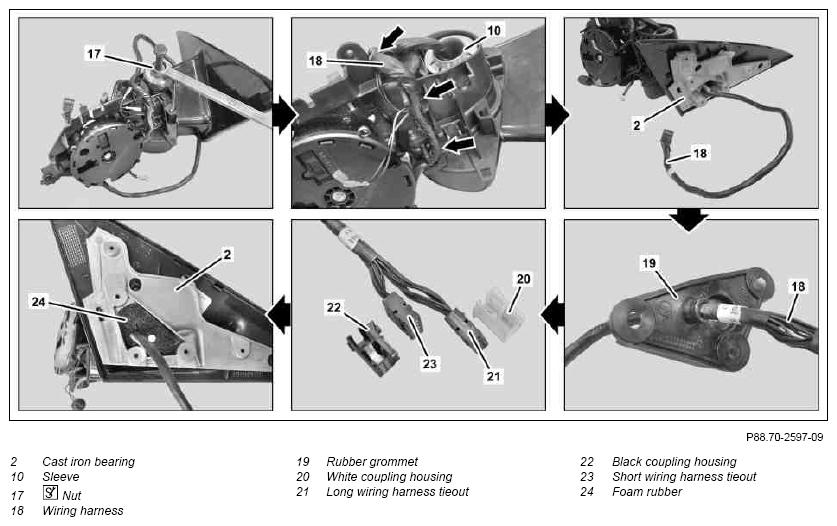

Fig 3: Identifying Outside Mirror Disassembled And Assembled Components (3 Of 4)
G07639009Courtesy of MERCEDES-BENZ USA

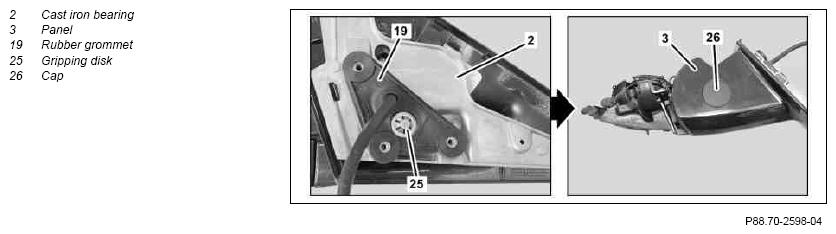

Fig 4: Identifying Outside Mirror Disassembled And Assembled Components (4 Of 4)
G07639010Courtesy of MERCEDES-BENZ USA
DISASSEMBLING Disassemble
1 Remove/install outside rearview mirror IMPORTANT Assemble new outside mirror from individual parts. see AR88.70-P-9000CW
2 Remove covering on outside rearview mirror   see AR88.70-P-9040CY
ASSEMBLING Assemble
3 Install foam rubber (1) on cast iron bearing (2)
4 Insert cast iron bearing (2) into cover (3) and arrest
5 Install seal (4) on cover (3) and arrest
6 Grease contact surface between cast iron bearing (2) and base plate (7).   see *BR00.45-Z-1085-06A
7 Remove transport retainer (5) IMPORTANT Observe marking (arrow) on folding mechanism (6) to base plate (7), do not change position.
IMPORTANT If the base plate (7), pin (8) or spring (9) should fall out of the folding mechanism (6), first insert spring (9), then pin (8) and then base plate (7) into the folding mechanism (6).

8 Grease contact surface between cast iron bearing (2) and base plate (7)   see *BR00.45-Z-1085-06A
9 Install cover (3) on folding mechanism (6) IMPORTANT Manually secure assembled cover (3) with folding mechanism (6) against falling apart until it is firmly connected together by the gripping disk (13).
10 Insert sleeve (10) into cast iron bearing (2)
11 Install spring (11) above sleeve (10)
12 Install base (12) on spring (11) IMPORTANT Observe positioning (arrow).
13 Install gripping disk (13) on base (12)
14 Position counterplate (14) on cast iron bearing (2) from bottom SPECIAL TOOL Fig 5
15 Screw thrust piece (15) into counterplate (14) with bolt (16) and nut (17) SPECIAL TOOL Fig 5
16 Screw nut (17) fully down IMPORTANT This pushes the gripping disk (13) onto the sleeve (10)
17 Guide electric wiring harness (18) through sleeve (10) IMPORTANT Press electrical wiring harness (18) on folding mechanism (6) into bracket (arrows).
18 Guide electrical wiring harness (18) through cast iron bearing (2)
19 Moisten wiring harness passage on rubber grommet (19) with lubricant   see *BR00.45-Z-1010-06A
20 Guide electrical wiring harness (18) through rubber grommet (19) NOTES Guide carefully to prevent rubber grommet (19) from being damaged by coupling housing (20, 22).
21 Clip white coupling housing (20) to long wiring harness tieout (21)
22 Clip black coupling housing (22) to short wiring harness tieout (23)
23 Insert foam rubber (24) into cast iron bearing (2)
24 Install rubber grommet (19) on cast iron bearing (2) in correct position
25 Press gripping disk (25) to cast iron bearing (2) with SW 10 socket wrench
26 Clip cap (26) into cover (3)
27 Install outside rearview mirror molding   see AR88.70-P-9040CY
Fig 5: Identifying Compressing Tool (001 589 00 31 00)
G07639011Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-06A Lubricant, rubber assembly 1 l A 000 989 03 67
BR00.45-Z-1085-06A Special grease lubricant A 000 989 38 60
