Overview of system components, electric outside mirrors - GF88.79-P-9997RQ
MODEL 197

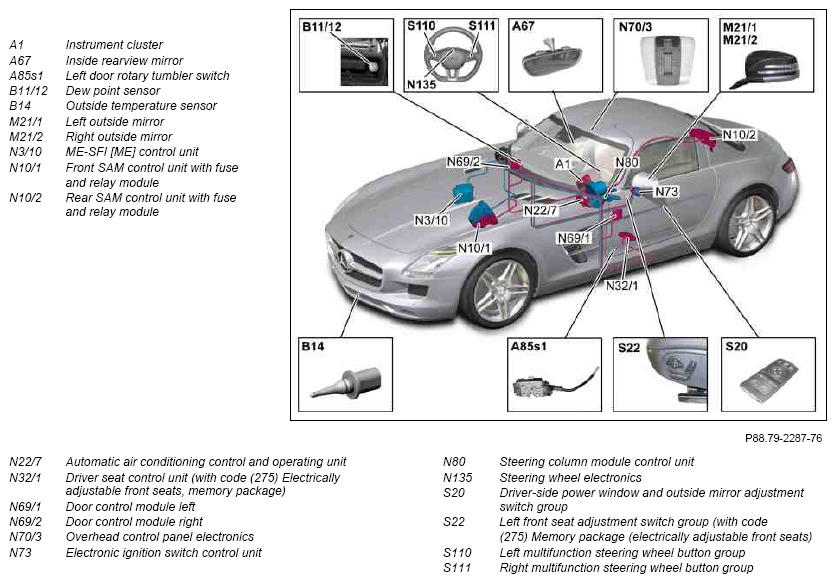

Illustrated on model 197.3
| Instrument cluster, component description | A1 | GF54.30-P-6000RQ |
| ME-SFI [ME] control unit, component description | N3/10 | GF07.61-P-6000RQ |
| Front SAM control unit with fuse and relay module, component description | N10/1 | GF54.21-P-6070RQ |
| Rear SAM control unit with fuse and relay module, component description | N10/2 | GF54.21-P-6030RQ |
| Component description for automatic air conditioning control and operating unit | N22/7 | GF83.40-P-3000RQ |
| Driver seat control unit component description | N32/1 With code (275) Memory package for electrically adjustable front seats |
GF91.29-P-5231RQ |
| Left door control unit, component description | N69/1 | GF72.29-P-4124RQ |
| Right door control unit, component description | N69/2 | GF72.29-P-4128RQ |
| Component description for the electronic ignition switch control unit | N73 | GF80.57-P-6001RQ |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RQ |
| Table of contents for function description of electric outside mirrors | see GF88.79-P-0997RQ |
