Overview of system components for electric mirrors - GF88.79-P-9996KN
MODEL 246
Electric mirrors shown on model 246

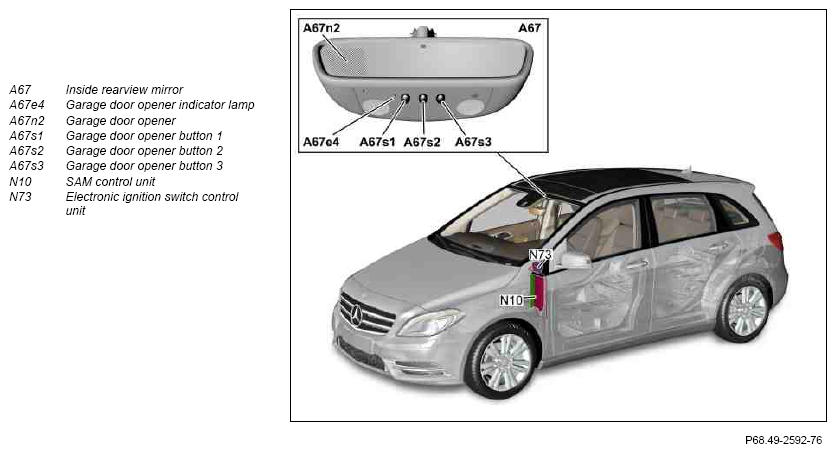

Garage door opener (with code (232) Garage door opener with frequency 284-390 MHz), shown on model 246
| Instrument cluster, component description | A1 | GF54.30-P-6000KN |
| Radio, component description | A2 With code (510) Audio 20 with CD changer or code (523) MB Audio 20 radio |
GF82.60-P-3122KN |
| Component description for COMAND controller unit | A40/3 (with code (512) COMAND APS incl. DVD changer or code (526) COMAND with single DVD drive (without navigation) or code (527) COMAND APS with single DVD drive (with navigation) |
GF82.85-P-3136KN |
| Audio/COMAND display, component description | A40/8 | GF54.30-P-6150KN |
| CDI control unit, component description | N3/9 With engine 651 |
GF07.16-P-6000OLB |
| ME-SFI [ME] control unit, component description | N3/10 With engine 270 |
GF07.61-P-6000MT |
| SAM control unit, component description | N10 | GF54.21-P-4157KN |
| Automatic air conditioning control and operating unit, component description | N22/7 | GF83.40-P-3000KN |
| Driver seat control unit, component description | N32/1 With code (275) Memory package (driver seat, mirror) |
GF91.29-P-5231KN |
| Left front door control unit, component description | N69/1 | GF72.29-P-6001KN |
| Right front door control unit, component description | N69/2 | GF72.29-P-6009KN |
| Electronic ignition lock control unit, component description | N73 | GF80.57-P-6001KN |
| Dual clutch transmission fully integrated transmission control unit component description | Y3/14n4 With transmission 724 |
GF26.19-P-4300SIA |
| Table of contents for function description of electric mirrors | see GF88.79-P-0996KN |
