Reversing camera (RFK), block diagram - GF54.65-P-0005-02LE

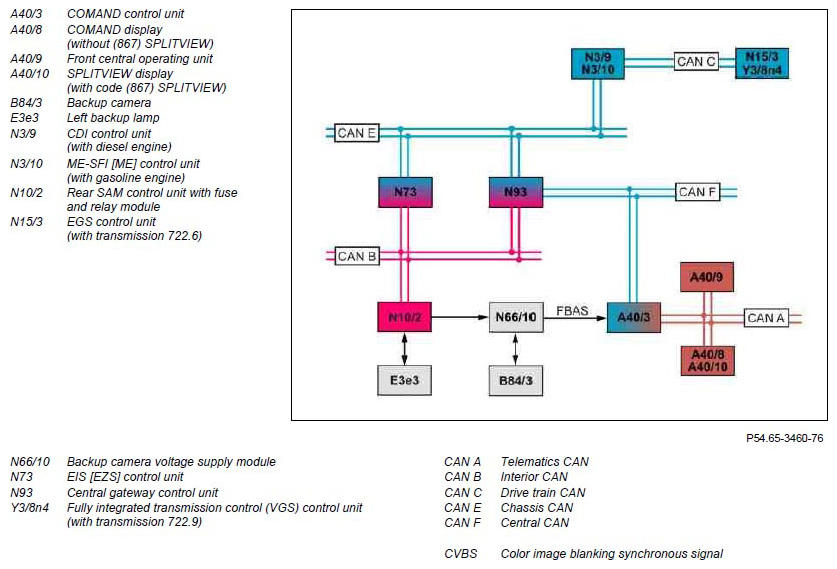

Fig 1: Identifying Reversing Camera (RFK) Block Diagram

G07643371

Courtesy of MERCEDES-BENZ USA
