Parking system, location of components - GF54.65-P-0006-01LE

Illustrated on model 221.0

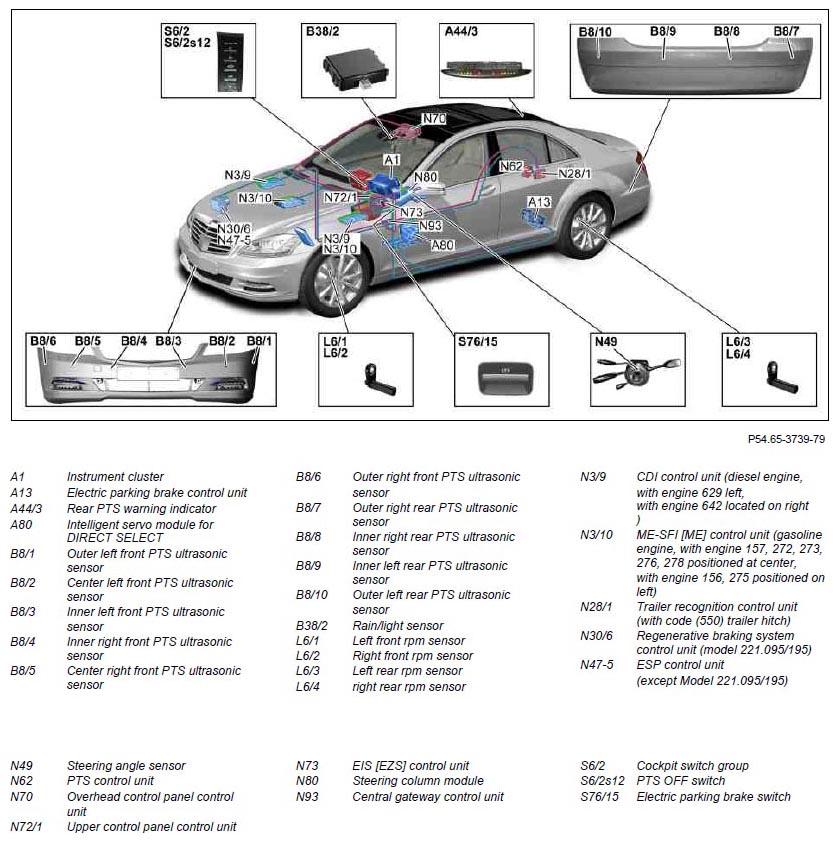

Fig 1: Identifying Parking System Components Location

G07643381

Courtesy of MERCEDES-BENZ USA
