Fanfare horns block diagram - GF54.35-P-0001-03LE

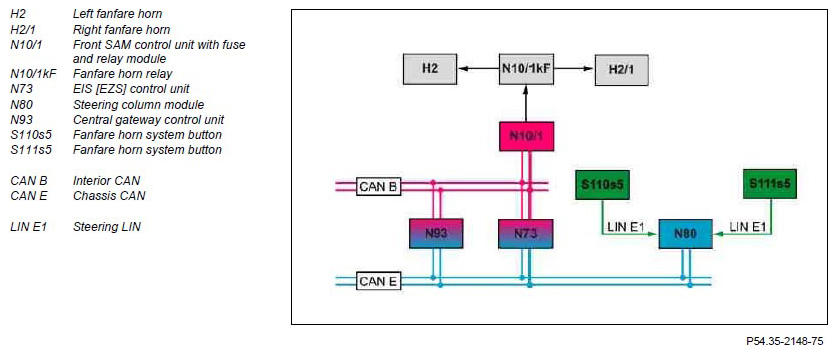

Fig 1: Identifying Fanfare Horns Block Diagram

G07643348

Courtesy of MERCEDES-BENZ USA
