Backup camera (RFK) location of components - GF54.65-P-0005-01SX

Shown on model 221.0

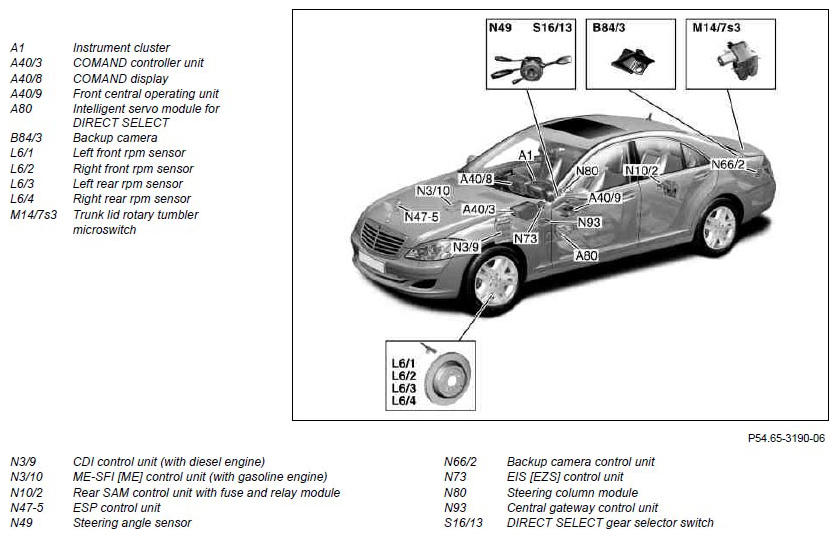

Fig 1: Identifying Backup Camera (RFK) Components Location

G07643370

Courtesy of MERCEDES-BENZ USA
