Automatic lane recognition, location of components - GF54.71-P-0002-01LE

Shown on model 221.0

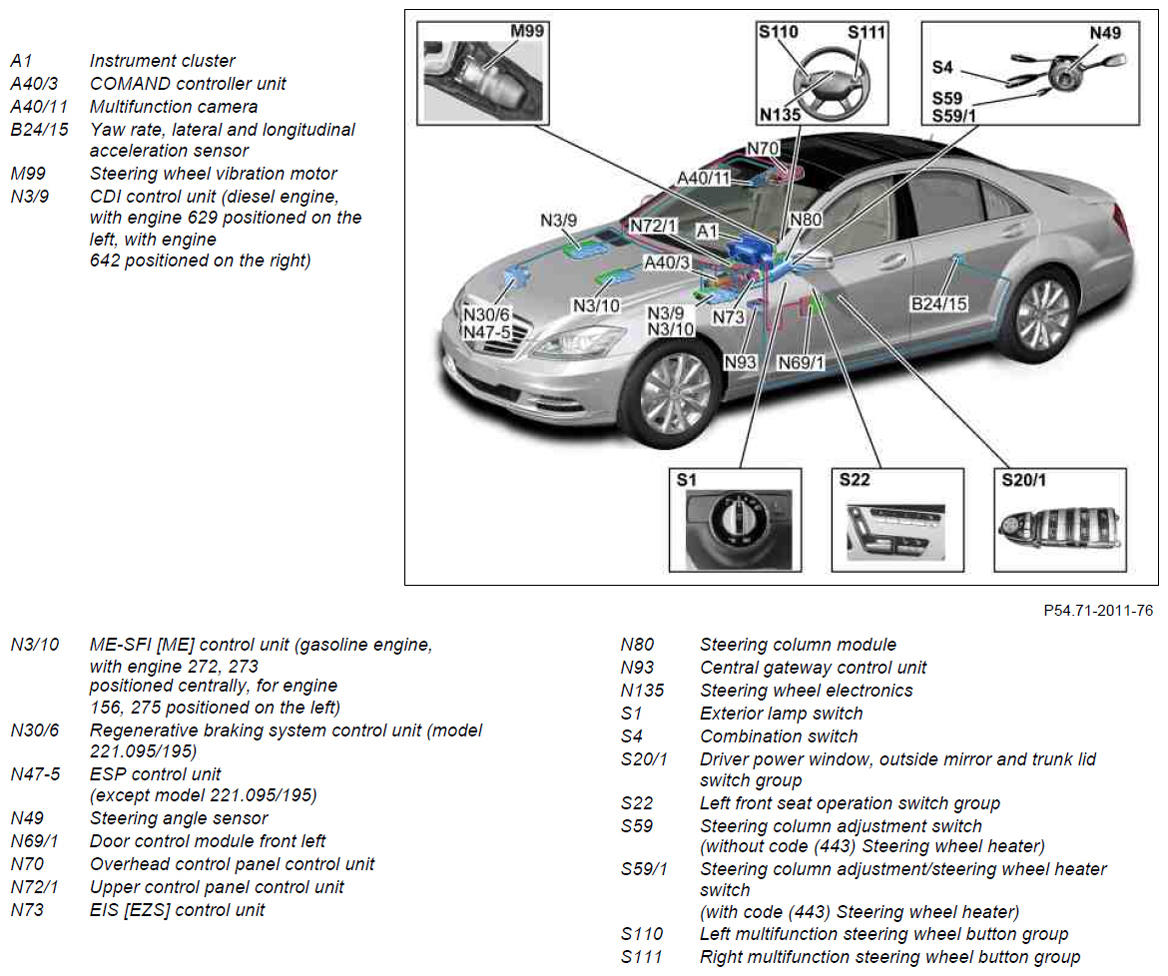

Fig 1: Identifying Automatic Lane Recognition Components Location

G07643427

Courtesy of MERCEDES-BENZ USA
