Automatic lane recognition, block diagram - GF54.71-P-0002-02LE

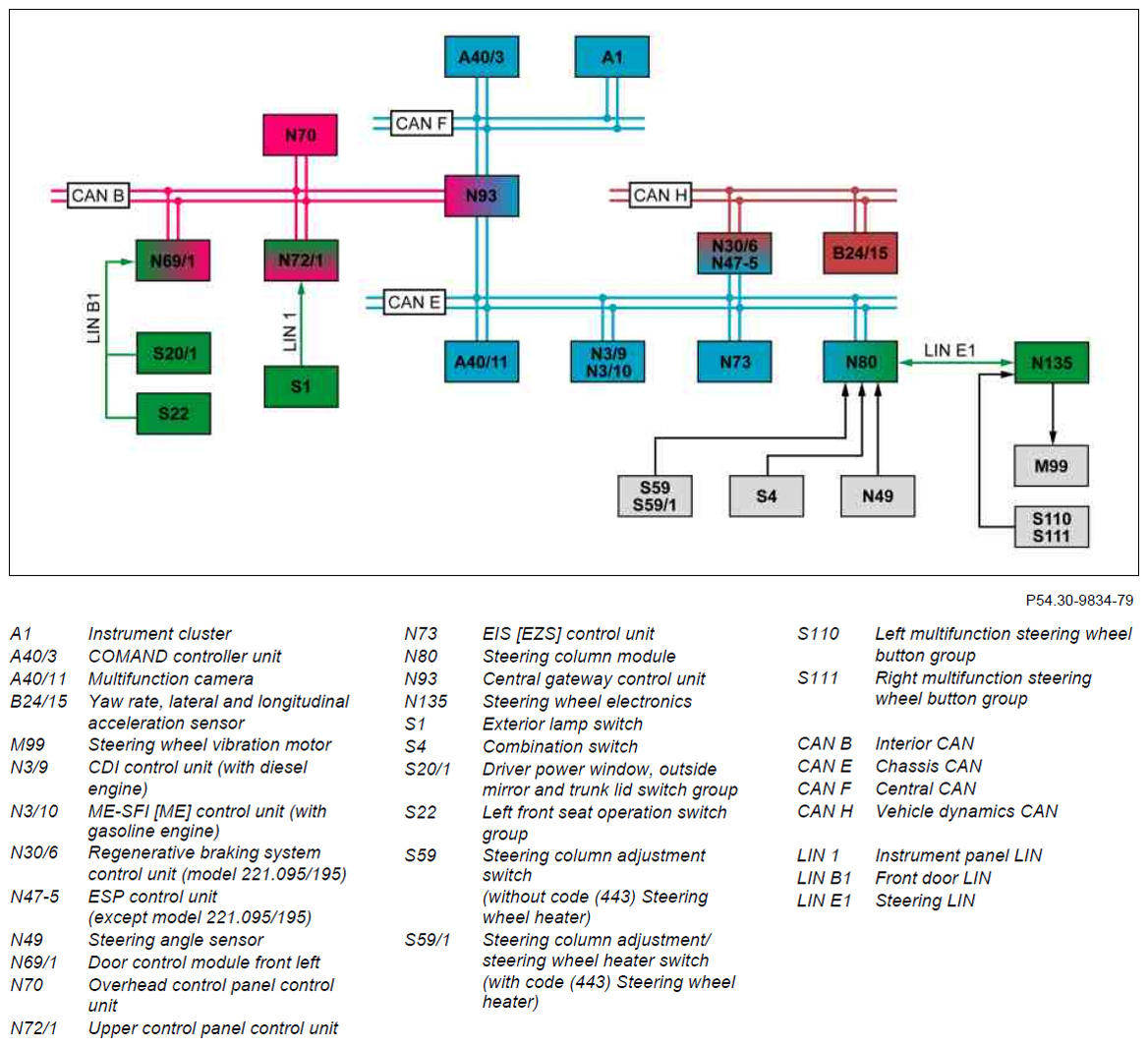

Fig 1: Identifying Automatic Lane Recognition Block Diagram

G07643428

Courtesy of MERCEDES-BENZ USA
