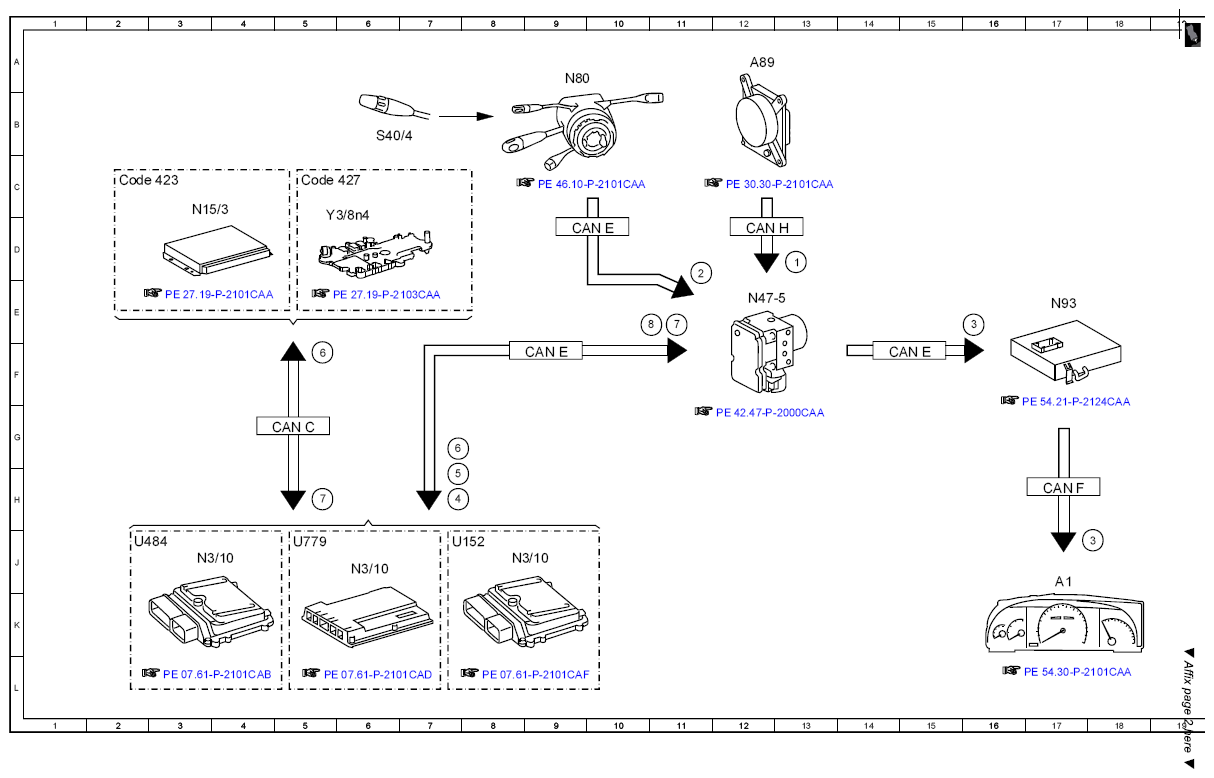

| 1 |
Far range radar sensor, signal |
13D |
| 2 |
DISTRONIC, request |
11D |
| 3 |
Instrument cluster, message |
16E |
| 3 |
Instrument cluster, message |
18H |
| 4 |
Engine torque, increase request |
7H |
| 5 |
Engine torque, reduce request |
7H |
| 6 |
Shift stage, request |
7G |
| 6 |
Shift stage, request |
5F |
| 7 |
Gear range, status |
5H |
| 7 |
Gear range, status |
11E |
| 8 |
Accelerator pedal, status |
10E |
| A1 |
Instrument cluster |
17K |
| A89 |
DTR control unit |
12B |
| CAN C |
Drive train CAN |
5G |
| CAN E |
Chassis CAN |
9F |
| CAN E |
Chassis CAN |
10D |
| CAN E |
Chassis CAN |
15F |
| CAN F |
Central CAN |
17H |
| CAN H |
Vehicle dynamics CAN |
12D |
| Code 423 |
5-speed automatic transmission |
3D |
| Code 427 |
7-speed automatic transmission |
6D |
| N15/3 |
ETC [EGS] control unit |
4D |
| N3/10 |
ME-SFI [ME] control unit |
3K |
| N3/10 |
ME-SFI [ME] control unit |
6K |
| N3/10 |
ME-SFI [ME] control unit |
9K |
| N47-5 |
ESP control unit |
12F |
| N80 |
Steering column module |
9B |
| N93 |
Central gateway control unit |
17F |
| S40/4 |
CC [TPM] switch |
6B |
| U152 |
Valid for engine 156 |
9K |
| U484 |
Valid for M273 ME |
3K |
| U779 |
Valid for engine 275 |
5K |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
6D |
