DISTRONIC, location of components - GF30.30-P-0005-01LEA

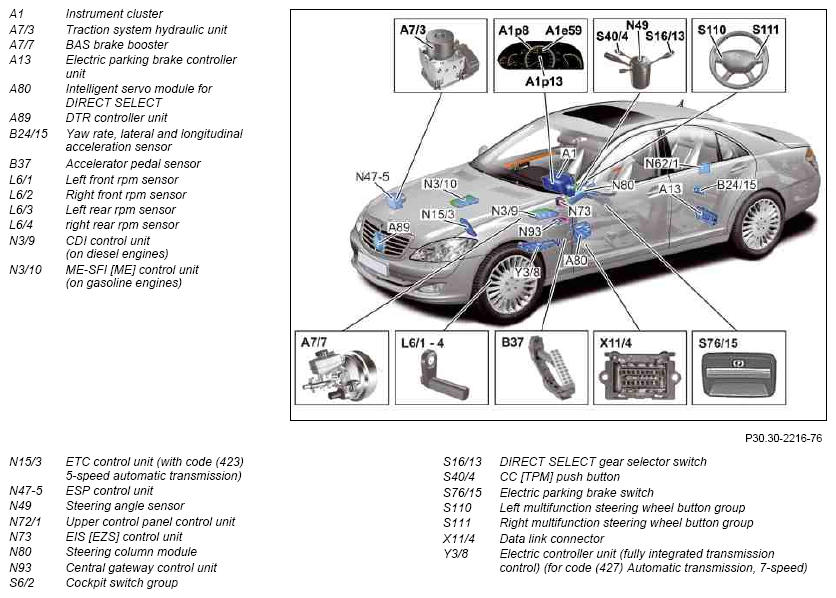

Fig 1: Distronic Components Location

G07641044

Courtesy of MERCEDES-BENZ USA
