| AO |
Explanation of color codes |
15L |

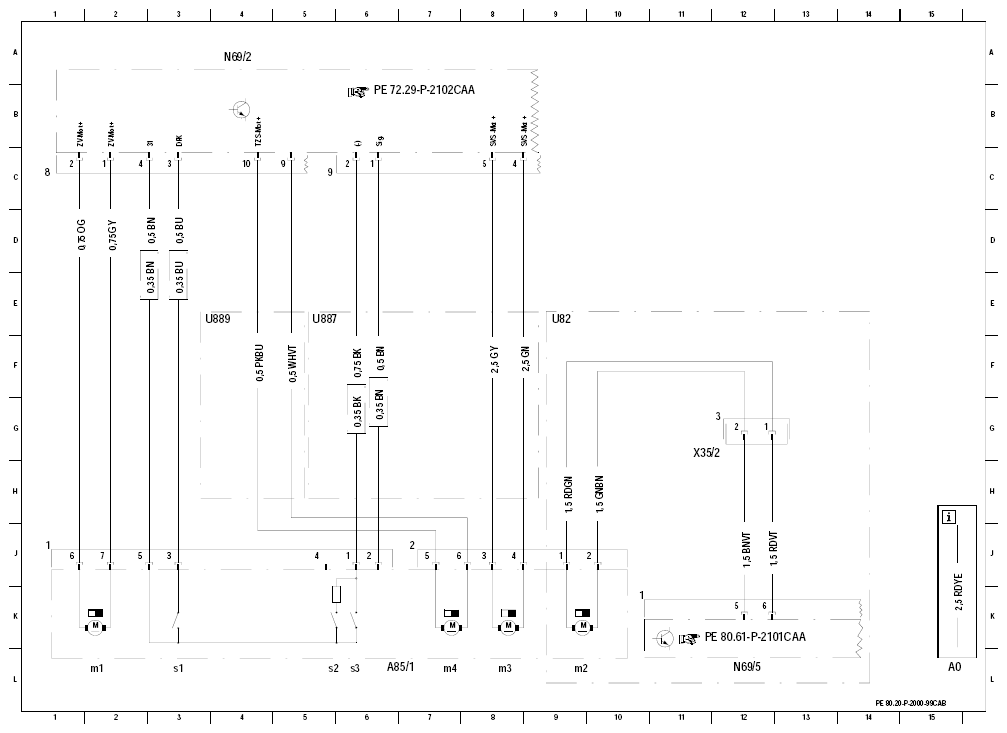

| A85/1 |
Right door lock unit |
6L |
| A85/1m1 |
Right CL [ZV] motor |
1L |
| A85/1m2 |
Right opening assist motor |
9L |
| A85/1m3 |
Right power closing motor |
8L |
| A85/1m4 |
Right door additional lock motor |
7L |
| A85/1s1 |
Right rotary tumbler switch |
3L |
| A85/1s2 |
Right drive lock pawl switch |
5L |
| A85/1s3 |
Right safety limit switch |
5L |
| N69/2 |
Right door control module |
4A |
| N69/5 |
Keyless Go control module |
12L |
| U82 |
Valid for keyless go |
9E |
| U887 |
Valid for power closing |
5E |
| U889 |
Valid for additional door lock |
3E |
| X35/2 |
Right front door and FFS [RBA] connector |
11H |
