Trip computer (RRE) component networking - GF54.50-P-0001-02SX

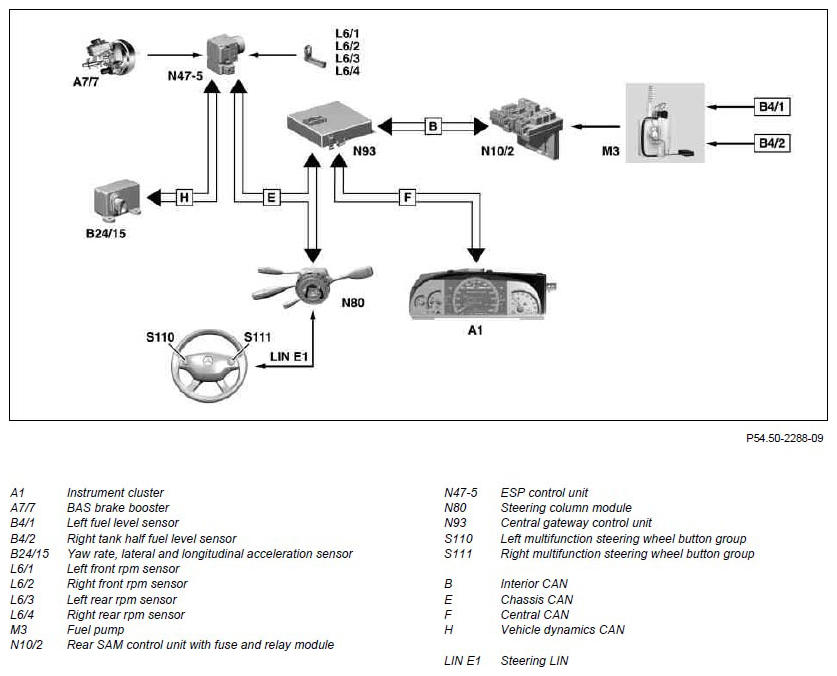

Fig 1: Identifying Trip Computer (RRE) Component Networking Diagram

G07643350

Courtesy of MERCEDES-BENZ USA

Shown on model 221.07 up to 31.8.06
