Component description for PARKTRONIC control unit - GF54.65-P-5001LEA
MODEL 216.3, 221.0 /1 with CODE (220) PARKTRONIC as of model year 2009 /YoM 08
MODEL 221.0 /1 with CODE (230) Advanced Parking Guidance as of model year 2010 /YoM 09 model refinement package
MODEL 216.3 with CODE (230) Advanced Parking Guidance as of model year 2011 /YoM 10 model refinement package
Illustrated on model 221.0

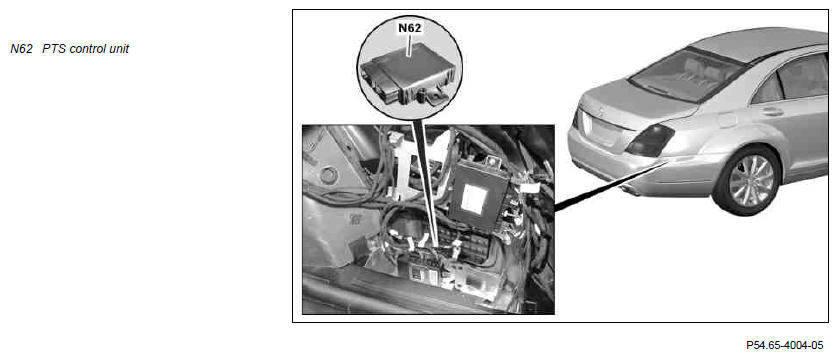

Location
The PTS control unit is located behind the panel in the right luggage compartment.
Task
The PTS control unit has the following tasks:
- Reading in of sensors, pickups and signals
- Evaluating input factors
- Actuation of components
Reading in of sensors, pickups and signals
The input factors are read in via the following connections:
- Direct line
- Interior CAN (CAN B) (via central gateway control unit (N93))
- Chassis CAN (CAN E)
- Central CAN (CAN F) (via central gateway control unit)
- Front end CAN (CAN G) (via central gateway control unit)
Direct line
The following sensors are read in via a direct line:
- Outer left front PTS ultrasonic sensor (B8/1)
- Center left front PTS ultrasonic sensor (B8/2)
- Inner left front PTS ultrasonic sensor (B8/3)
- Inner right front PTS ultrasonic sensor (B8/4)
- Center right front PTS ultrasonic sensor (B8/5)
- Outer right front PTS ultrasonic sensor (B8/6)
- Outer right rear PTS ultrasonic sensor (B8/7)
- Inner right rear PTS ultrasonic sensor (B8/8)
- Inner left rear PTS ultrasonic sensor (B8/9)
- Outer left rear PTS ultrasonic sensor (B8/10)
Interior CAN
The signals from the following control units are sent via the interior CAN to the central gateway control unit and from there forwarded to the PTS control unit via the chassis CAN:
- Trailer recognition control unit (N28/1) (on model 221 with code (550) Trailer hitch)
- Overhead control panel control unit (N70)
- Upper control panel control unit (N72/1)
Chassis CAN
Signals from the following components are received by the PTS control unit via the chassis CAN:
- Regenerative braking system control unit (N30/6) (on model 221.095/195)
- ESP control unit (N47-5) (except model 221.095/195)
- CDI control unit (N3/9) (on diesel engine)
- ME-SFI [ME] control unit (N3/10) (on gasoline engine)
- EGS control unit (N15/3) is read in by the ME-SFI [ME] control unit or CDI control unit via the drive train CAN (with transmission 722.6)
- Fully integrated transmission control unit (VGS) (Y3/8n4) is read in by the ME-SFI [ME] control unit or CDI control unit via the drive train CAN (with transmission 722.9)
- Steering column tube module (N80)
Central CAN
The signals from the following control units are sent via the central CAN to the central gateway control unit and from there forwarded to the PTS control unit via the chassis CAN:
- Instrument cluster (A1)
- COMAND controller unit (A40/3)
Front end CAN
The signals from the electric parking brake controller unit (A13) are sent via the front end CAN to the central gateway control unit and from there forwarded via the chassis CAN to the PTS control unit.
Evaluating input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The components are actuated via the following connections:
- Direct line
- Interior CAN (via central gateway control unit)
- Central CAN (via central gateway control unit)
Direct line
The following components are actuated by the PTS control unit via a direct line:
- Outer left front PTS ultrasonic sensor
- Center left front PTS ultrasonic sensor
- Inner left front PTS ultrasonic sensor
- Inner right front PTS ultrasonic sensor
- Center right front PTS ultrasonic sensor
- Outer right front PTS ultrasonic sensor
- Outer right rear PTS ultrasonic sensor
- Inner right rear PTS ultrasonic sensor
- Inner left rear PTS ultrasonic sensor
- Outer left rear PTS ultrasonic sensor
- Rear PTS warning indicator (A44/3)
Interior CAN
The following components are actuated over the interior CAN:
- Function LED in PTS OFF switch (S6/2s12) via the upper control panel control unit
The signals are read in by the central gateway control unit via the chassis CAN and passed on to the upper control panel control unit via the interior CAN.
Central CAN
The following components are actuated via the central CAN:
- PTS warning indicator in instrument cluster
The signals are read in by the central gateway control unit via the chassis CAN and forwarded via the central CAN to the instrument cluster.
| Wiring diagram for Parktronic system (PTS) control unit | Model 216 | PE54.65-P-2101-97CAD |
