Remove/install shield at transmission - AR27.40-P-0700-01CW

TRANSMISSION 722.6 /9 in MODEL 204, 207

MODIFICATION NOTES

11.10.07 Bolt, shield to transmission housing   *BA27.40-P-1003-01B
  Bolt, shield to transmission housing   *BA27.40-P-1003-01E
HOUSING

Number Designation   Transmission 722.6 in model 204 Transmission 722.6 in model 207
BA27.40-P-1003-01B Bolt, heat shield to transmission housing Nm 11 11
HOUSING

Number Designation   Transmission 722.9 in model 204 Transmission 722.9 in model 207
BA27.40-P-1003-01E Bolt, heat shield to transmission housing Nm 11 11
  1. Remove bolt (1) and remove shield (2) downwards.
  2. Press cable tie (4) out of shield (2) and remove shield (2).

    IMPORTANTInstallation  : The shield (2) must be positioned under the leaf spring (3).

    IMPORTANT The leaf spring (3) must be modified if a new transmission is installed.

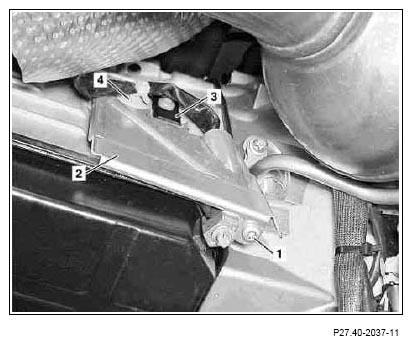

Fig 1: Identifying Shield, Cable Tie And Bolts
G07301420Courtesy of MERCEDES-BENZ USA
