Transmission oil temperature sensor, component description - GF27.19-P-4017CWQ
TRANSMISSION 722.9 in MODEL 204.0 up to Model Year 8

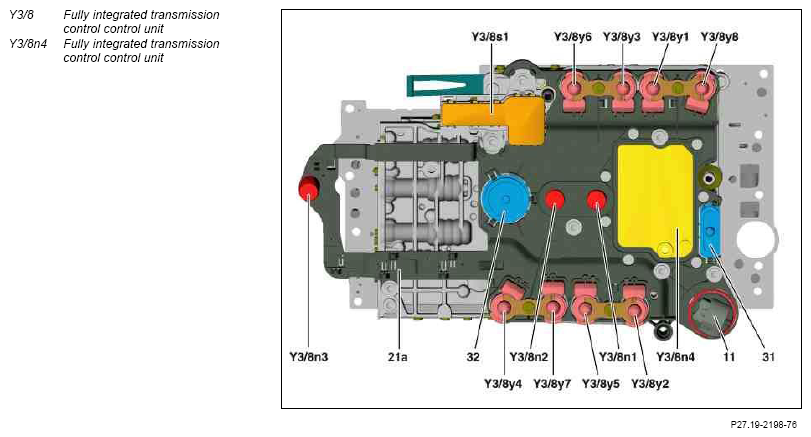

Location
The transmission oil temperature sensor (Y3/8s2) is integrated in the fully integrated transmission control unit.
Task
The transmission oil temperature sensor detects the transmission oil temperature. This is processed as an input variable by the fully integrated transmission control unit.
Design
The transmission oil temperature sensor has a measuring resistor with a negative temperature coefficient (NTC).
