Steering wheel gear shifter component description - GF27.19-P-1201CWQ
TRANSMISSION 722.9 in MODEL 204.0 with CODE (428) Steering wheel shift buttons up to Model Year 8

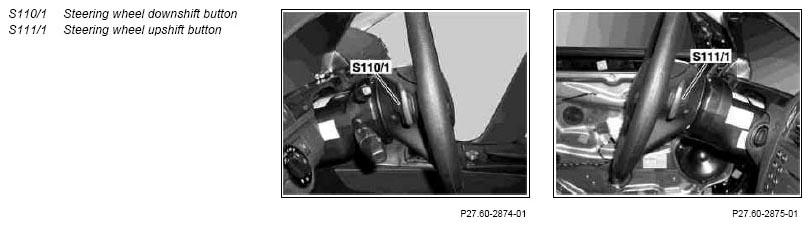

Location
The steering wheel downshift button is on the left on the back of the multifunction steering wheel (MFL) and the steering wheel upshift button is on the right on the back of the multifunction steering wheel (MFL).
Task
The steering wheel downshift button and steering wheel upshift button have the following tasks:
- Preselection of shift range.
- Shifting into a gear from which the vehicle can be favorably accelerated or decelerated.
- Direct switching of all forward gears in manual program "M"
Function
The steering wheel downshift button and steering wheel upshift button are read in by the steering column module control unit (N80) via the steering LIN. The steering column module control unit places the "upshift" or "downshift" signal on the chassis CAN. The fully integrated transmission control unit (Y3/8n4) receives the signal via the ME-SFI control unit (N3/10) and triggers the gear-shift operation.
Shifts, which could result in impermissibly high or low engine speeds, are not performed.
