Selection range sensor, component description - GF27.19-P-5146CWQ

TRANSMISSION 722.9 in MODEL 204.0 up to Model Year 8

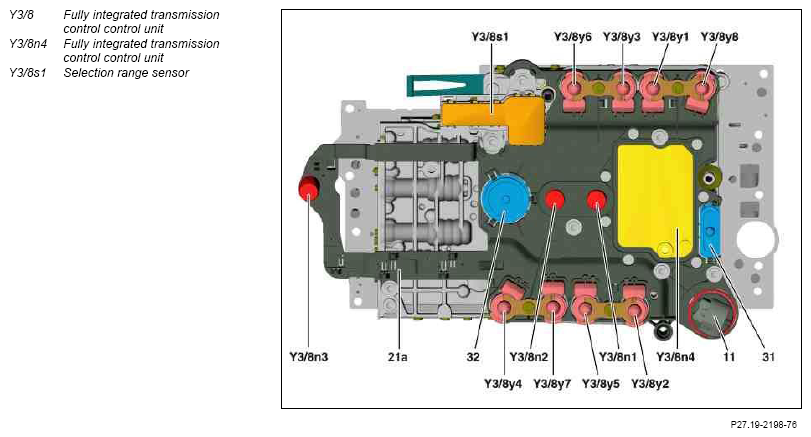

Fig 1: Identifying Selection Range Sensor Components

Courtesy of MERCEDES-BENZ USA

Location

The selection range sensor is integrated in the fully integrated transmission control controller unit.

Task

The task of the selection range sensor is to detect the selection ranges "P", "R", "N", "D" and the intermediate positions.
