Power flow in 7th gear, function - GF27.10-P-3026GZ

TRANSMISSION 722.9 in MODEL 164.1/8, 204.0, 216, 221, 251.0/1 up to Model Year 8

The Ravigneaux gear set consists of the following components:

• Short planet gears
• Long planet gears
• Small internal-geared wheel
• Dual planet carrier
• Sun gear (7)
• Large internal-geared wheel

The front single planetary gear set consists of the following components:

• Planetary gears (52)
• Internal-geared wheel (12)
• Planet carrier (13)
• Sun gear (14)

The rear single planetary gear set consists of the following components:

• Planetary gears (51)
• Internal-geared wheel (9)
• Planet carrier (10)
• Sun gear (11)

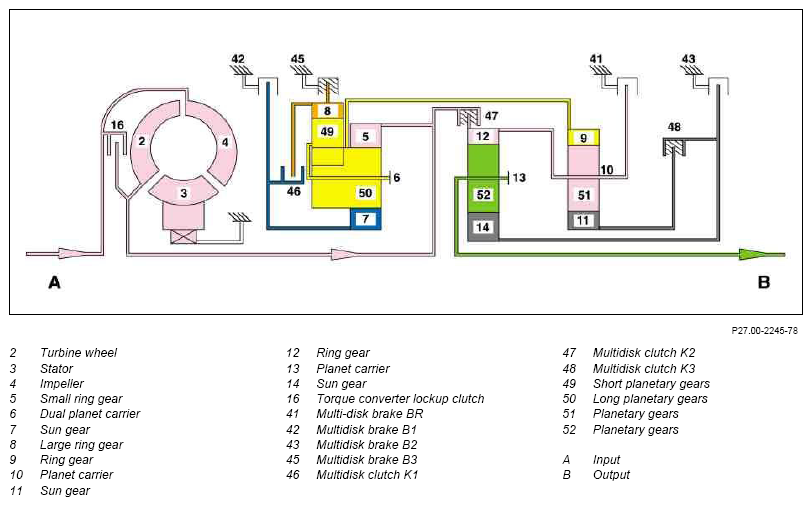

Power flow in 7th gear, function

The following multi-disk brakes and multi-disk clutches are engaged:

• Multiple-disk brake B3
• Multi-disk clutch K2
• Multi-disk clutch K3

Ravigneaux gear set

The small ring gear is driven via the transmission input shaft. The long planetary gears drive the short planetary gears which roll in the large stalled ring gear. The resulting increased torque and resulting decreased rotational speed are transmitted to the dual planet carrier.

Single rear planetary gear system

The ring gear (9) rotates at the same rotational speed due to the mechanical connection to the dual planet carrier. The planetary gears (51) transmit the rotary motion to the sun gear (11). The sun gear (11) passes on the rotational speed to the sun gear (14) via the closed multi-disk clutch K3.

Single front planetary gear system

The closed multi-disk clutch K2 means that the transmission input torque and transmission input speed are transmitted to the ring gear (12). There is an increased rotation speed and a reduced torque due to the speed difference between the sun gear (14) and ring gear (12). These are passed on via the planet carrier (13) to the transmission output shaft. The transmission output shaft thus rotates with reduced transmission input speed in the direction of rotation of the engine.

	Torque converter component description		GF27.20-P-2010GZ
	Planetary gear set component description	Simple planetary gear system	GF27.50-P-2100GZ
		Ravigneaux gear set	GF27.50-P-2100GZZ
	Multi-disk brake component description		GF27.51-P-5105GZ
	Multi-disk clutch component description		GF27.51-P-2010GZ
