Power flow in 5th gear, function - GF27.10-P-3015GZ
TRANSMISSION 722.9 in MODEL 164.1/8, 204.0, 216, 221, 251.0/1 up to Model Year 8
The Ravigneaux gear set consists of the following components:
- Short planet gears
- Long planet gears
- Small internal-geared wheel
- Dual planet carrier
- Sun gear (7)
- Large internal-geared wheel
The front single planetary gear set consists of the following components:
- Planetary gears (52)
- Internal-geared wheel (12)
- Planet carrier (13)
- Sun gear (14)
The rear single planetary gear set consists of the following components:
- Planetary gears (51)
- Internal-geared wheel (9)
- Planet carrier (10)
- Sun gear (11)

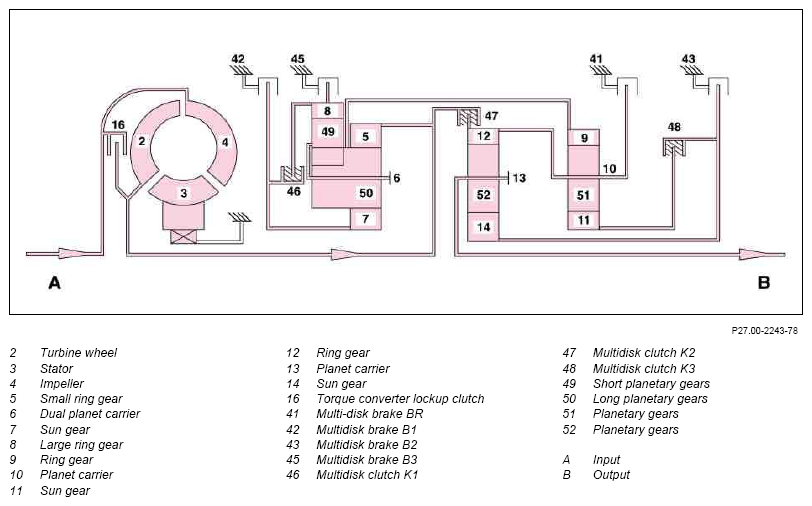

Power flow in 5th gear, function
The following multi-disk clutches are engaged:
- Multi-disk clutch K1
- Multi-disk clutch K2
- Multi-disk clutch K3
The power flow runs from the transmission input shaft of the automatic transmission (AT) via the blocked Ravigneaux gear set and the blocked front single planetary gear set to the output. The transmission output shaft rotates at the transmission input speed in the direction of rotation of the engine.
| Torque converter component description | GF27.20-P-2010GZ | ||
| Planetary gear set component description | Simple planetary gear system | GF27.50-P-2100GZ | |
| Ravigneaux gear set | GF27.50-P-2100GZZ | ||
| Multi-disk brake component description | GF27.51-P-5105GZ | ||
| Multi-disk clutch component description | GF27.51-P-2010GZ |
