Automatic transmission (AT), location of mechanical parts - GF27.10-P-0001-07GZ

Transmission 722.9 in model 164.1/8, 204.0, 216, 221, 251.0/1

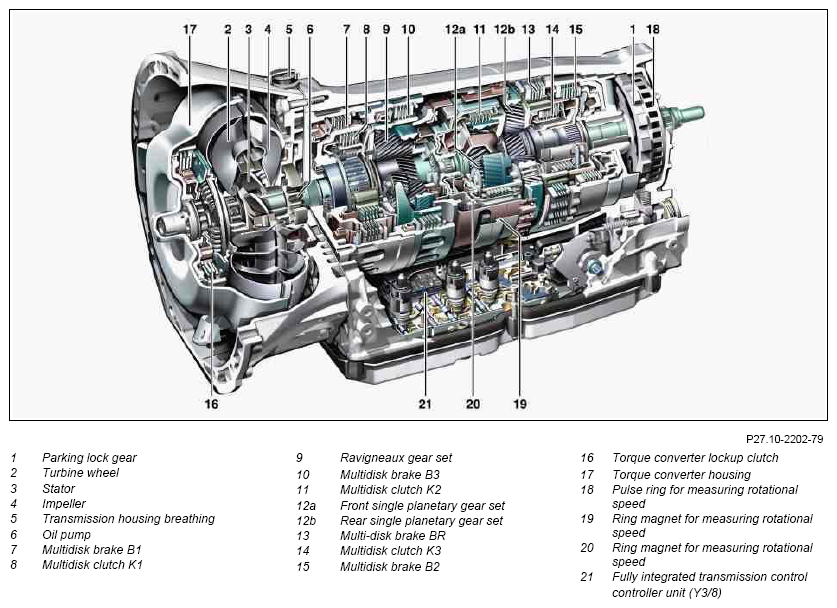

Fig 1: Identifying Automatic Transmission Mechanical Components

Courtesy of MERCEDES-BENZ USA
