Automatic transmission (AT), location of mechanical parts - GF27.10-P-0001-07AHW

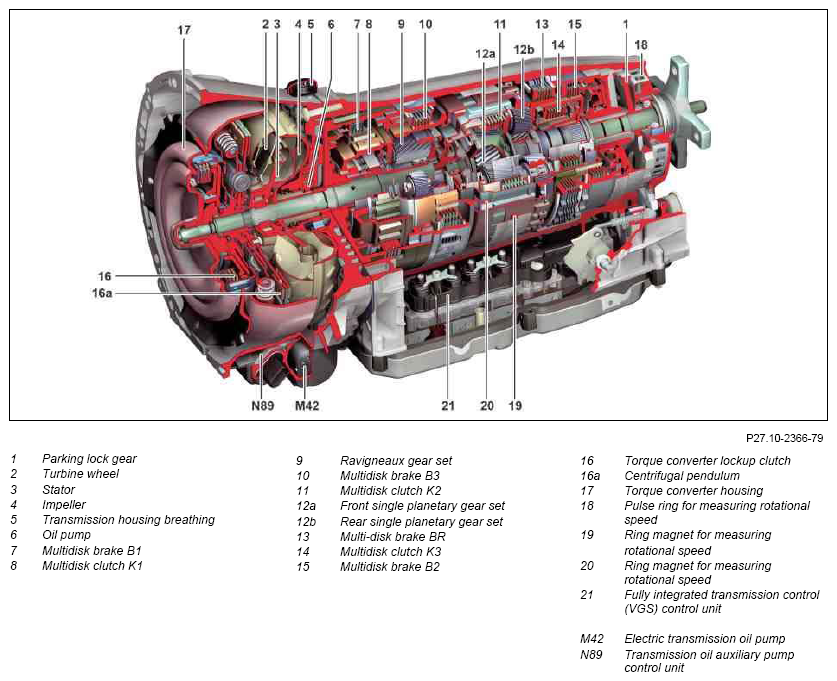

Sectional view of automatic transmission shown on model 204.092/292

Fig 1: Identifying Automatic Transmission Mechanical Components

Courtesy of MERCEDES-BENZ USA

Sectional view of automatic transmission, shown on model 204.3 with engine 651.9

Fig 2: Identifying Automatic Transmission Mechanical Components

Courtesy of MERCEDES-BENZ USA

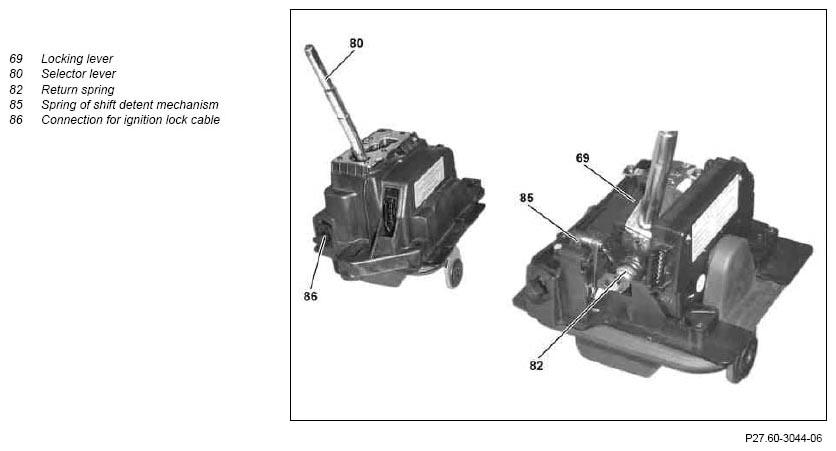

View of selector lever module from left front

Fig 3: Identifying Locking Lever, Selector Lever, Return Spring, Connection For ignition Lock Cable And Spring Of Shift Detent Mechanism

Courtesy of MERCEDES-BENZ USA
