Automatic transmission (AT), location of hydraulic components - GF27.10-P-0001-09GZ

Transmission 722.9 in model 164.1/8, 204.0, 216, 221, 251.0/1

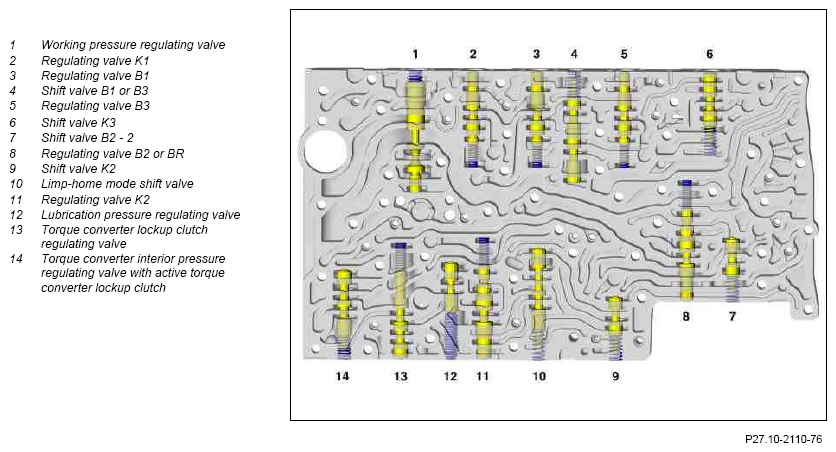

Valve housing

Fig 1: Identifying Automatic Transmission Hydraulic Components
G07539621Courtesy of MERCEDES-BENZ USA

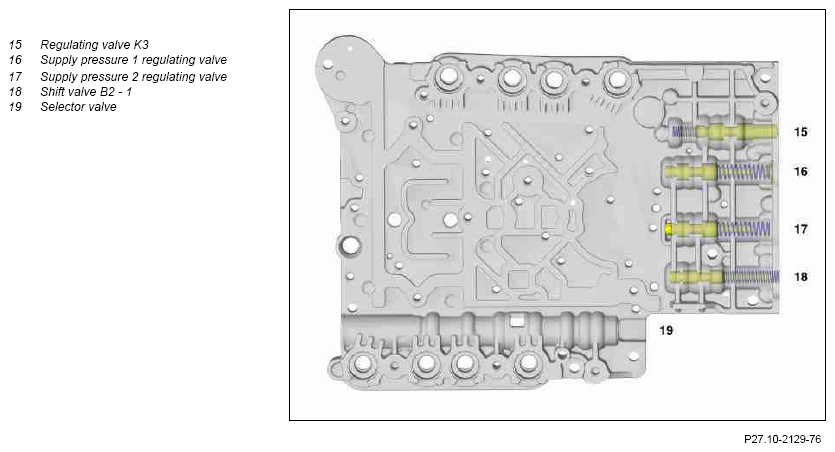

Valve body

Fig 2: Identifying Automatic Transmission Hydraulic Components
G07539622Courtesy of MERCEDES-BENZ USA
