Automatic transmission (AT), location of electric/electronic components - GF27.10-P-0001-08CWQ

Transmission 722.9 in model 204.0

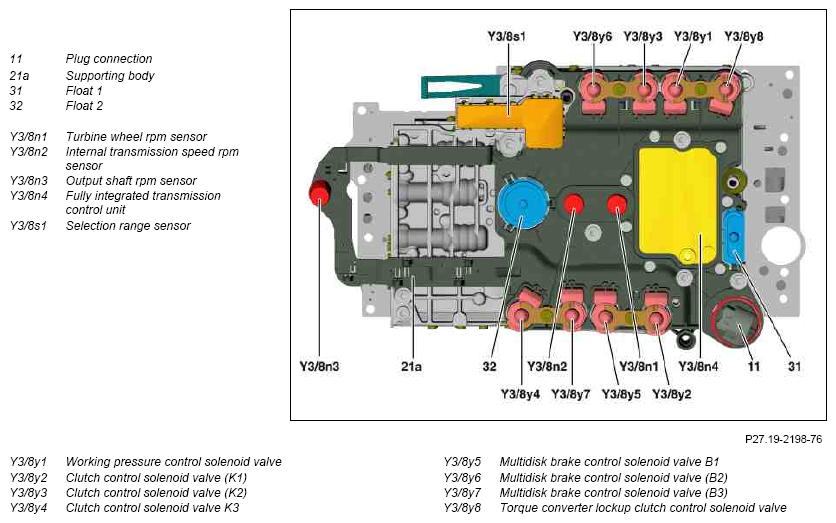

Fig 1: Identifying Automatic Transmission Electric/Electronic Components
G07539618Courtesy of MERCEDES-BENZ USA
