Automatic transmission (AT), location of components, floor shift - GF27.10-P-0001-04CWQ

Transmission 722.9 in model 204.0

Schematic representation

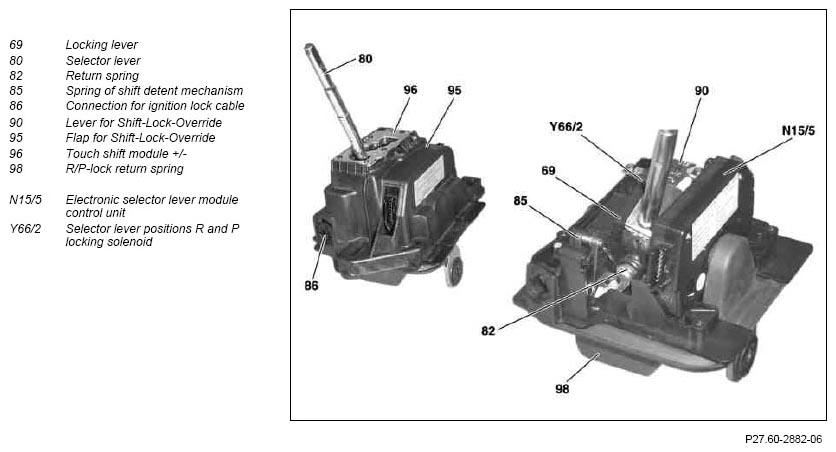

Fig 1: Identifying Automatic Transmission Floor Shift Components

Courtesy of MERCEDES-BENZ USA
