Automatic transmission (AT), driver information - GF27.10-P-0001-02CWQ
Transmission 722.9 in model 204.0 except code (494) USA version

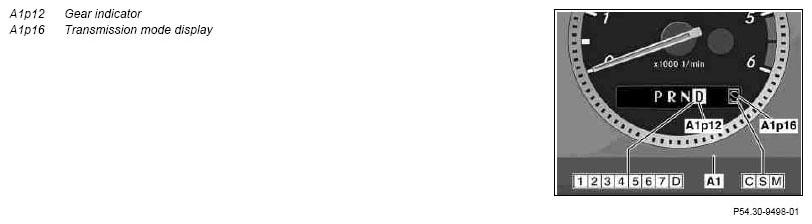

Gear indicator in instrument cluster (A1) in sport mode "S" and in comfort mode "C"
It shows the driver the currently selected shift range "1", "2", "3", "4", "5", "6" or selector lever position "D", "R", "N" (neutral) or "P" (park).
Gear indicator in the instrument cluster in manual program "M"
It shows the driver the engaged gear "1", "2", "3", "4", "5", "6", "7".
Transmission mode display in instrument cluster
It indicates to the driver the program selection "S" (sport program), "C" (comfort program or "M" (manual program) performed at the automatic transmission mode button (S16/12).
