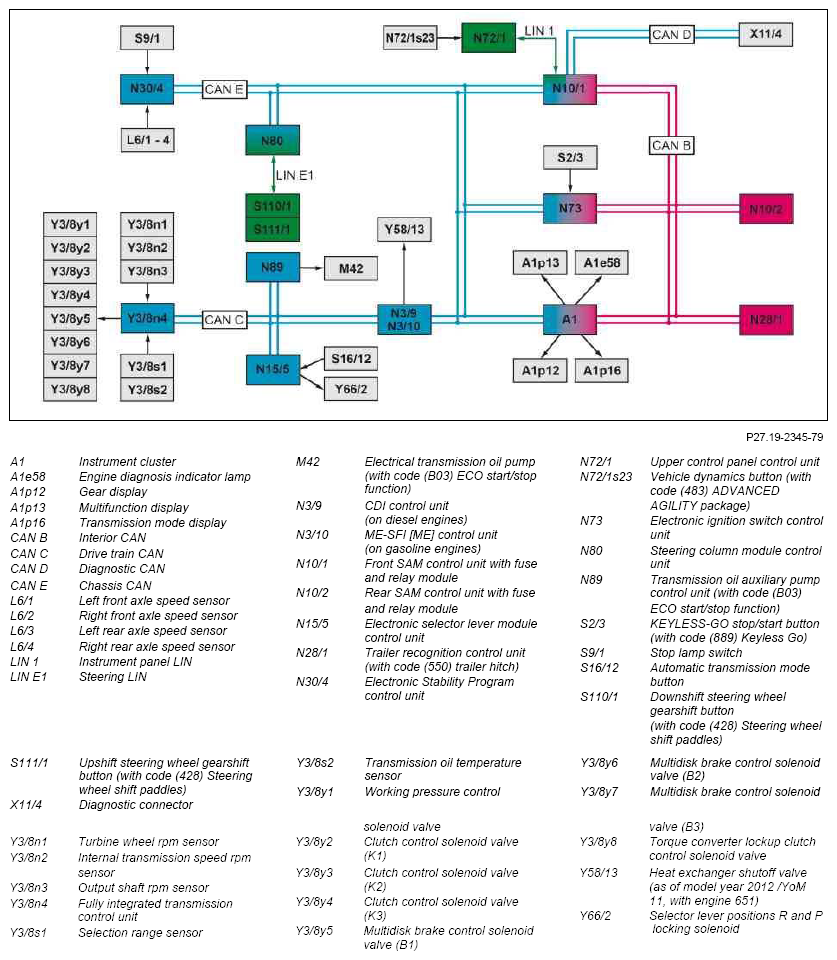

Automatic transmission (AT), block diagram - GF27.10-P-0001-20AHW
Implementation dates and validities for code (B03) ECO start/stop function
- Model 204.0/2 as of model year 2012/YoM 11 model refinement package with engine 271.8, 276.9, 651.9
- Model 204.025/225 as of 1.6.2011 with engine 642.8
- Model 204.3
- Model 204.9 as of 1.6.2011 with engine 651.9
- Model 204.988 as of 1.1.2011 with engine 276.9
The Electronic Stability Program control unit (N30/4) will be introduced into service as of 1.3.2011 (model 204.0/2) or as of 1.6.2011 (model 204.3) in 2 variants:
- ESP control unit, Basic variant (except code (233) DISTRONIC PLUS)
- ESP control unit, Premium variant (with code (233) DISTRONIC PLUS)
Up to 28.2.2011 only the ESP control unit as a Basic variant will be introduced into service.
