Puller hook for lower part of clip on sliding/pop-up roof trim - WF58.50-P-7720-03A

All models

  1. Fabricate puller hook using welding wire Ø (2 mm dia.)
    NOTE: Fabricate puller hook (arrow), so that it passes through opening at bottom of clip.

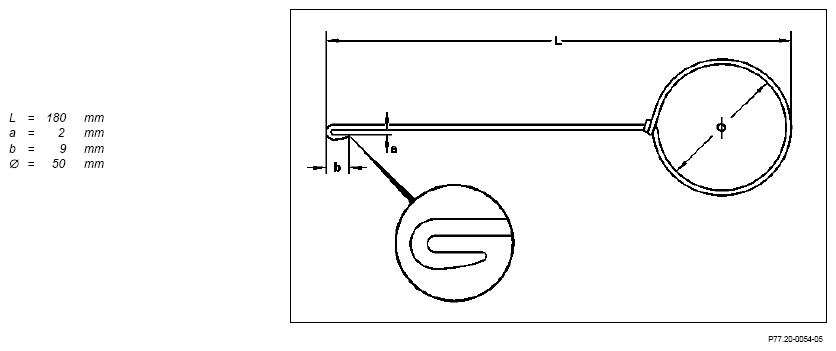

    Fig 1: Identifying Puller Hook Using Welding Wire (2 mm Dia)
    G07527939Courtesy of MERCEDES-BENZ USA
