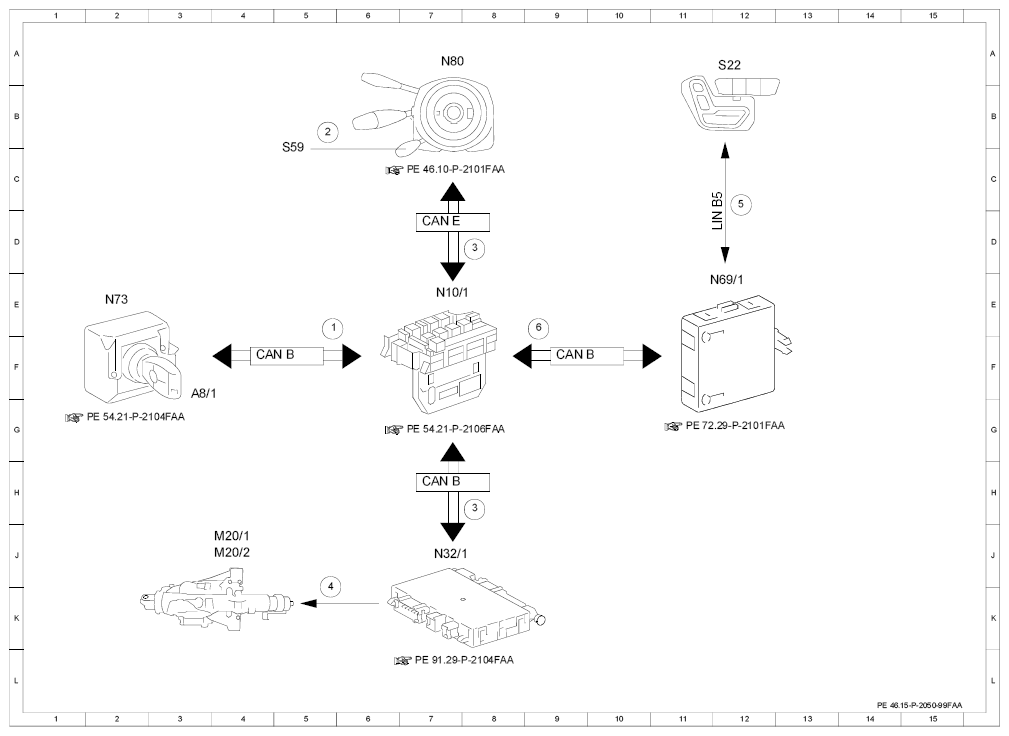

Function schematic of electrical system for steering column adjustment - PE46.15-P-2050-99FAA
MODEL 204.0 /2 with CODE (275) Memory package (driver seat, steering column, mirrors) up to Model Year 08 /modification year 07
| Code : | Designation : | Position : |
|---|---|---|
| 1 | Circuit 15, status | 5E |
| 2 | Steering column adjustment switch, status | 5B |
| 3 | Steering column adjustment motor, request | 8H |
| 3 | Steering column adjustment motor, request | 8D |
| 4 | Steering column adjustment motor, actuation | 5K |
| 5 | Seat adjustment switch group, status | 12D |
| 6 | Store/call up steering column adjustment motor position, request | 9E |
| A8/1 | Transmitter key | 3G |
| CANB | Interior CAN | 4F |
| CANB | Interior CAN | 7H |
| CANB | Interior CAN | 9F |
| CANE | Chassis CAN | 7D |
| LINB5 | Left door LIN | 12D |
| M20/1 | Steering column in/out adjustment motor | 4J |
| M20/2 | Steering column up/down adjustment motor | 4J |
| N10/1 | Front SAM control unit with fuse and relay module | 7E |
| N32/1 | Driver seat control unit | 7J |
| N69/1 | Left front door control unit | 11E |
| N73 | Electronic ignition switch control unit | 2E |
| N80 | Steering column module control unit | 7A |
| S22 | Left front seat adjustment switch group | 12A |
| S59 | Steering column adjustment switch | 5C |
