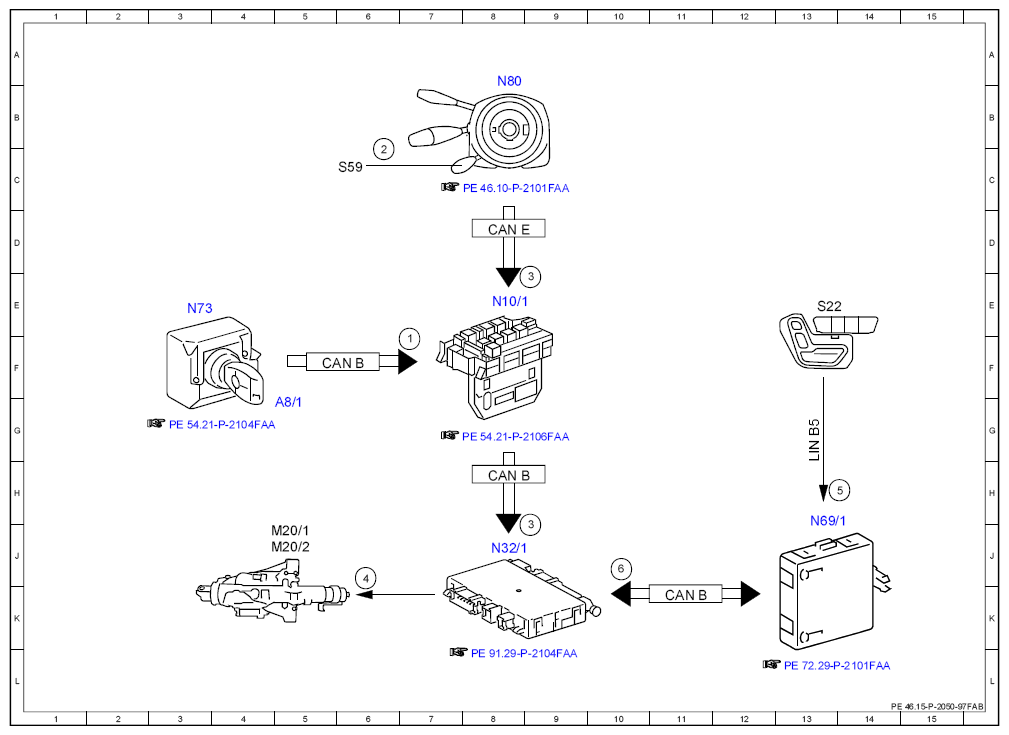

Electrical function schematic for steering column adjustment - PE46.15-P-2050-97FAB
MODEL 204.0 /2 with CODE (275) Memory package (driver seat, steering column, mirrors) as of model year 2009 /YoM 08
MODEL 204.3 with CODE (275) Memory package (driver seat, steering column, mirrors) MODEL 204.9 with CODE (275) Memory
| Code : | Designation : | Position : |
|---|---|---|
| 1 | Circuit 15, status | 7F |
| 2 | Steering column adjustment switch, status | 6C |
| 3 | Steering column adjustment motor, request | 9J |
| 3 | Steering column adjustment motor, request | 9E |
| 4 | Steering column adjustment motor, actuation | 6J |
| 5 | Seat adjustment switch group, status | 13H |
| 6 | Store/call up steering column adjustment motor position, request | 10J |
| A8/1 | Transmitter key | 5G |
| CANB | Interior CAN | 8H |
| CANB | Interior CAN | 11K |
| CANB | Interior CAN | 5F |
| CANE | Chassis CAN | 8D |
| LINB5 | Left door LIN | 13G |
| M20/1 | Steering column in/out adjustment motor | 4J |
| M20/2 | Steering column up/down adjustment motor | 4J |
| N10/1 | Front SAM control unit with fuse and relay module | 8E |
| N32/1 | Driver seat control unit | 8J |
| N69/1 | Left front door control unit | 13J |
| N73 | Electronic ignition switch control unit | 3E |
| N80 | Steering column module control unit | 8B |
| S22 | Left front seat adjustment switch group | 13E |
| S59 | Steering column adjustment switch | 6C |
