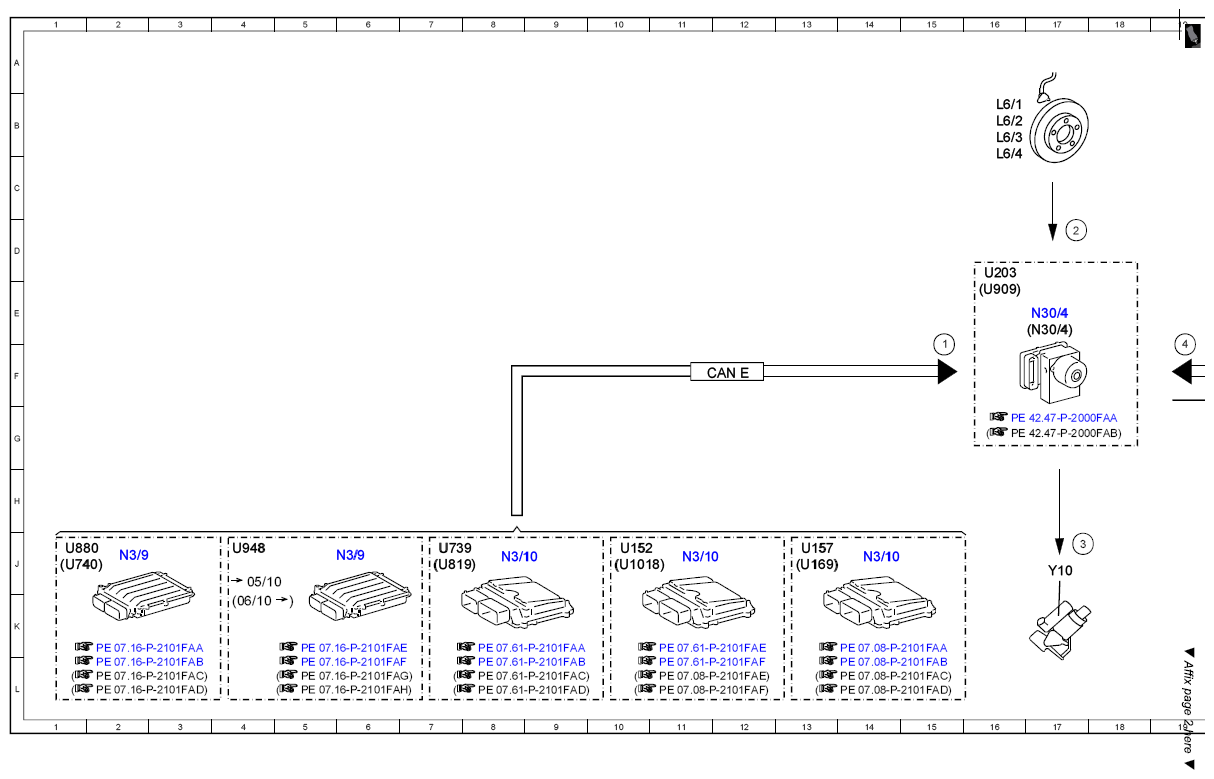

Electrical function schematic for speed-sensitive power steering (PML) - PE46.50-P-2050-97FAA
MODEL 204.0 /2 with CODE (213) Speed-sensitive power steering as of Model Year 2009 /modification year 08
MODEL 204.3 with CODE (213) Speed-sensitive power steering
MODEL 204.956 /981 /983 /987 with CODE (213) Speed-sensitive power steering
| Code : | Designation : | Position : |
|---|---|---|
| 1 | Circuit 61, status | 15E |
| 2 | Wheel speed, signal | 17D |
| 3 | Speed-sensitive power steering solenoid valve, actuation | 17J |
| 4 | Steering angle, signal | 19E |
| 5 | Pressure regulator valve, actuation | 21J |
| CANE | Chassis CAN | 12F |
| CANE | Chassis CAN | 20F |
| L6/1 | Left front axle rpm sensor | 16B |
| L6/2 | Right front axle rpm sensor | 16B |
| L6/3 | Left rear axle rpm sensor | 16B |
| L6/4 | Right rear axle rpm sensor | 16C |
| N3/10 | ME-SFI [ME] control unit | 8J |
| N3/10 | ME-SFI [ME] control unit | 11J |
| N3/10 | ME-SFI [ME] control unit | 14J |
| N3/9 | CDI control unit | 2J |
| N3/9 | CDI control unit | 5J |
| N30/4 | Electronic Stability Program control unit | 17E |
| N30/4 | Electronic Stability Program control unit | 17E |
| N80 | Steering column module control unit | 23E |
| U1018 | Valid for gasoline engine 276 | 10J |
| U152 | Valid for gasoline engine 156 | 10J |
| U157 | Valid for combustion engine 272 DE | 13J |
| U169 | Valid for gasoline engine 271 DE | 13J |
| U203 | Valid without DISTRONIC PLUS | 16D |
| U229 | Valid for model designation 204.006/044/045/047/065/245/247 | 21G |
| U256 | Valid for model designation 204.052/054/056/252/254/256 as of 1.9.08 | 21H |
| U257 | Valid for model designation 204.041/046/241/246 as of 1.9.08 | 21H |
| U739 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 7J |
| U740 | Valid for diesel engine 646 | 1J |
| U819 | Valid for gasoline engine 272 | 7J |
| U880 | Valid for diesel engine 642 | 1J |
| U909 | Valid for DISTRONIC PLUS | 16E |
| U948 | Valid for diesel engine 651 | 4J |
| Y10 | Speed-sensitive power steering solenoid valve | 17J |
| Y10/1 | Power steering pump quantity control valve | 22J |
