Steering column adjustment switch, component description - GF46.15-P-5010CW
MODEL 204.0/2
with CODE (275) Memory package (driver seat, steering column, mirrors)
up to Model Year 8
Illustrated on model 204.0
Location

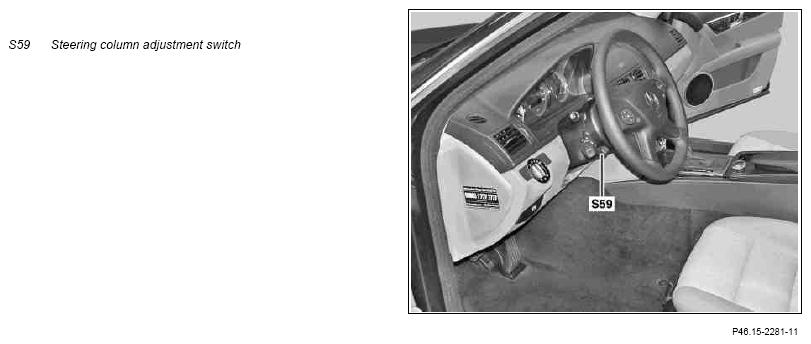

The steering column adjustment switch is located on the bottom left steering column.
Task
The steering column adjustment switch is used to adjust the steering column. It is read in directly by the steering column module control unit (N80). This makes the requests available to the chassis CAN.
