Steering column adjustment motor component description - GF46.15-P-5002CW
MODEL 204.0/2
with CODE (275) Memory package (driver seat, steering column, mirrors) up to Model Year 8
Illustrated on model 204.0
Location

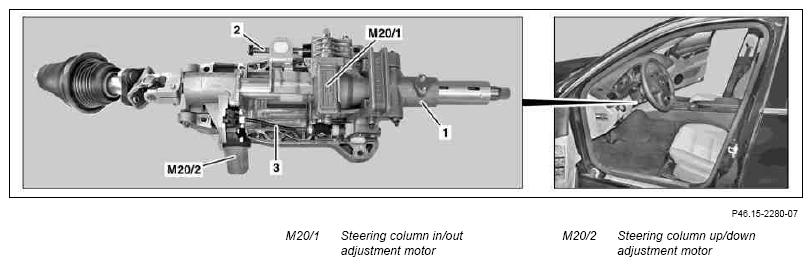

The steering column adjustment motors are mounted directly onto the steering column (1).
Task
The steering column adjustment motors drive the spindles (2) and the shaft (3) to perform adjustment in height and length to the steering column.
To record the position they are equipped with integrated Hall sensors.
Actuation and position recording are performed by the driver seat control unit (N32/1).
