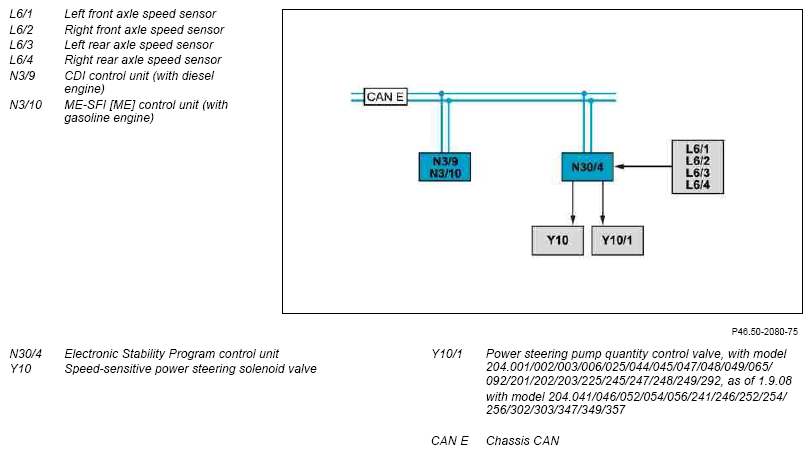

Speed-sensitive power steering (SPS [PML]), block diagram - GF46.50-P-0001-02CE
MODEL 204.0 /2 with CODE (213) Speed-sensitive power steering as of Model Year 2009 /AEJ 08
MODEL 204.901 /956 /981 /983 /987 /988 /992 with CODE (213) Speed-sensitive power steering
MODEL 204.302 /303 /347 /349 /357 with CODE (213)
The Electronic Stability Program control unit (N30/4) will be introduced into service as of 1.3.2011 (model 204.0/2) or as of 1.6.2011 (model 204.3) in 2 variants:
- ESP control unit, basic variant (except code (233) DISTRONIC PLUS)
- ESP control unit, premium variant (with code (233) DISTRONIC PLUS)
Up to 28.2.2011 or 31.5.2011 only the ESP control unit will be used in the basic version.
