Electrically adjustable steering column (ESC), block diagram - GF46.15-P-0003-02CW

MODEL 204.0 /2 with CODE (275) Memory package (driver seat, steering column, mirrors) up to Model Year 8

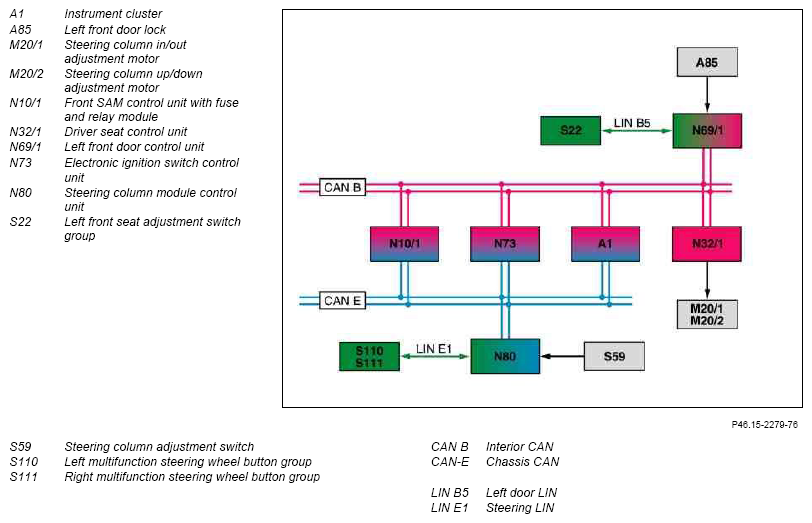

Fig 1: Identifying Electrically Adjustable Steering Column Block Diagram

Courtesy of MERCEDES-BENZ USA
