Remove/install front seat - AR91.10-P-1000CW

MODEL 204, 207, 212, 218

Shown on model 204.0, left front seat (1)

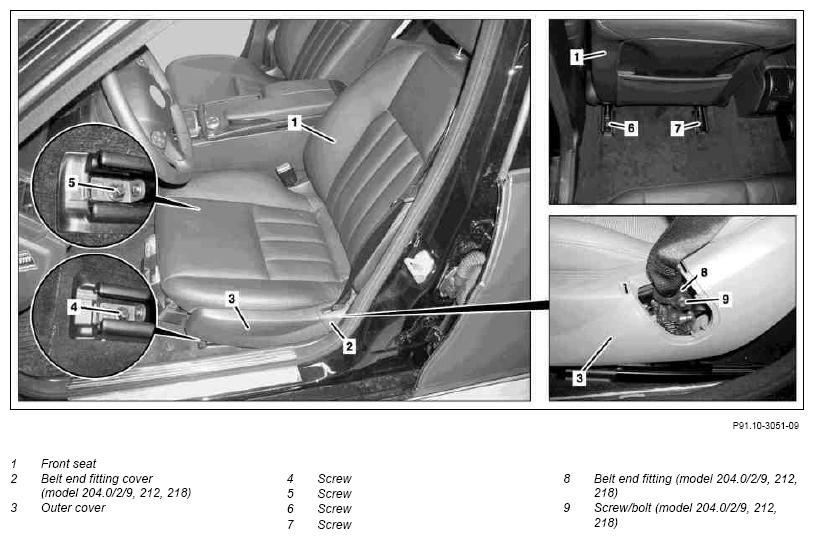

Fig 1: Identifying Front Seat, Outer Cover And Screws

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100°C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags or emergency tensioning retractor units		AH91.00-P-0002-01M
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Assessment of airbag and emergency tensioning retractor units in accident vehicles		AH91.00-P-0006-01B
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
1	Move head restraint down
2	Move front seat (1) forward and fully upwards
3	Unclip belt end fitting cover (2) at outer panel (3)	Model 204.0/2/9, 212, 218
4	Remove bolt (9) from belt end fitting (8)	Model 204.0/2/9, 212, 218
		Model 204.0/2/9	*BA91.40-P-1003-01P
		Model 212, 218	*BA91.40-P-1005-01Q
5	Remove belt end fitting (8)	Model 204.0/2/9, 212, 218
6	Remove bolts (6, 7) from seat rails		*BA91.10-P-1002-01Q
7.1	Move front seat (1) and front seat backrest to rear	Model 204.0/2/9, 212, 218 The front seat (1) is removed from the vehicle through the door cutout for the rear door.
7.2	Position front seat (1) to rear	Model 204.3, 207
8	Remove bolts (4, 5) from seat rails		*BA91.10-P-1002-01Q
9	Disconnect ground line for on-board electrical system battery (G1)	Model 204	AR54.10-P-0003CW
		Model 207, 212, 218	AR54.10-P-0003EW
10	Tilt back front seat (1)
11	Disconnect electrical connectors from bottom of front seat (1)	The number of electrical connectors depends on the equipment installed.
12	Disconnect pneumatic line from bottom of front seat (1)	Model 204.0/2/9, 207, 212, 218 with code (409) Left/right front multicontour seats Model 212 with code (432) Left and right dynamic multicontour seat Model 218 with code (432) Active multicontour seat
		Pliers	Fig 2
13.1	Cover up center console, rear seat cushion and door sill	Model 204.0/2/9, 212, 218
13.2	Cover up center console and door sill	Model 204.3, 207
14.1	Remove the front seat (1) from the vehicle through the door cutout for the rear door.	Model 204.0/2/9, 212, 218 Carefully remove front seat (1) from vehicle. Otherwise components in vehicle interior or at rear door will be damaged. Aid of helper required. Ensure that the locking bolts of the seat rails are correctly seated in the vehicle floor.
14.2	Remove front seat (1) from vehicle	Model 204.3, 207 Carefully remove front seat (1) from vehicle. Otherwise components in vehicle interior will be damaged. Aid of helper required. Ensure that the locking bolts of the seat rails are correctly seated in the vehicle floor.
15	Release covers on seat rails and remove
16	Put down front seat (1) and secure it against tipping over
17	Install in the reverse order

Pliers (000 589 04 37 00)

Fig 2: Identifying Pliers (000 589 04 37 00)

Courtesy of MERCEDES-BENZ USA
