Windowbag component description - GF91.60-P-4041CW
MODEL 204.0 /2 up to Model Year 8

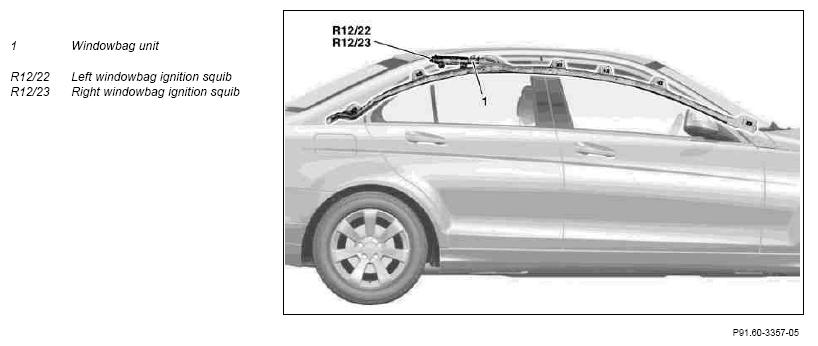

Illustrated on model 204.0
Location
The windowbag unit is located along the left and right of the roof paneling underneath the headliner.
Task
The windowbag units protect the occupants from injury in the event of a side impact or a rollover in the area of the windows from the A-pillar to the C-pillar.
Triggering is conducted by the supplemental restraint system control unit (N2/10) igniting the corresponding squib.
