Supplemental restraint system (SRS), location of components - GF91.60-P-0002-01CW

Illustrated on model 204.0

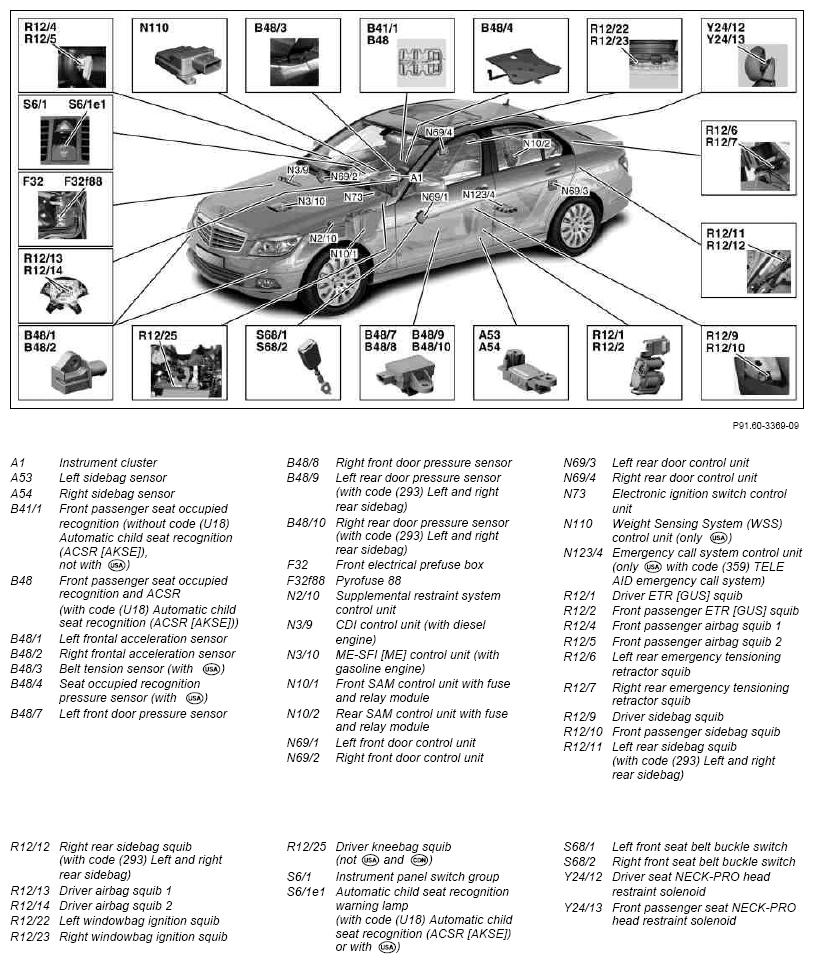

Fig 1: Identifying Supplemental Restraint System Components Location
G07532413Courtesy of MERCEDES-BENZ USA
