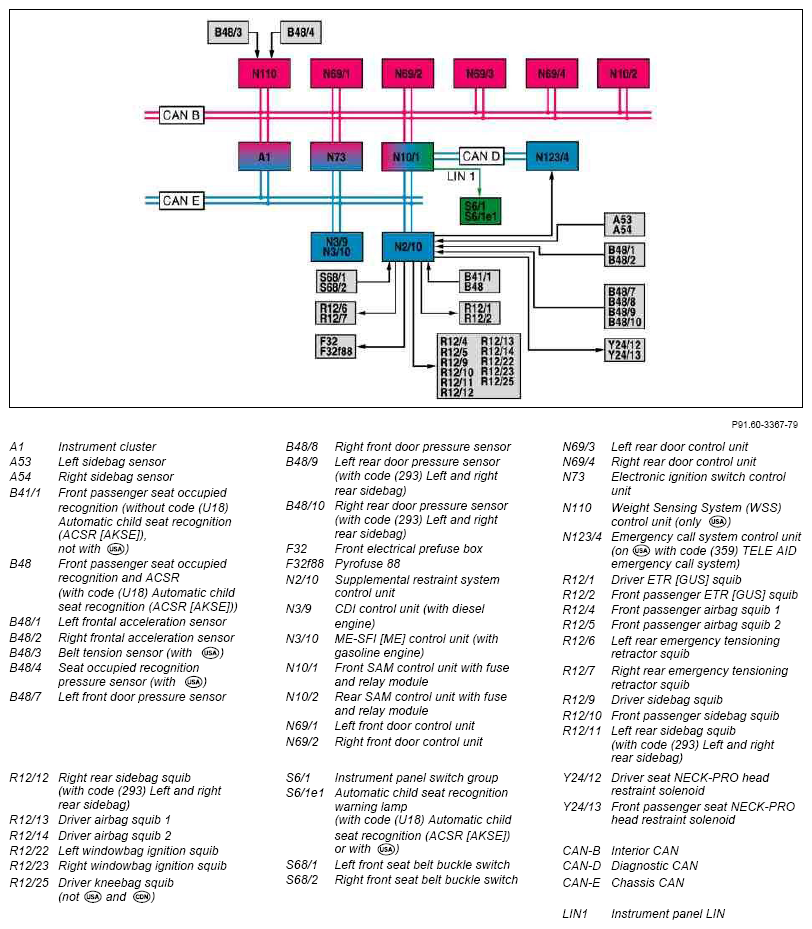

Supplemental restraint system (SRS), block diagram - GF91.60-P-0002-03CW

Fig 1: Identifying Supplemental Restraint System Block Diagram

G07532414

Courtesy of MERCEDES-BENZ USA
