Sidebag sensor component description - GF91.60-P-4034CW
MODEL 204.0 /2 up to Model Year 8
Illustrated on model 204.0

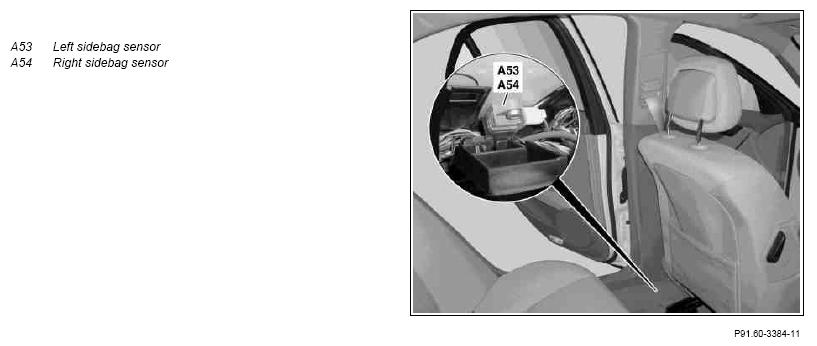

Location
The sidebag sensors are located on the vehicle floor in the vicinity of the B-pillar.
Task
The sidebag sensors sense a side impact at an early point in time. The supplemental restraint system control unit (N2/10) reads in the data of the sidebag sensors.
