Overview of supplemental restraint system (SRS) system components (MODEL 204.0 /2 as of model year 2009 /YoM 08, MODEL 204.3, 204.9) - GF91.60-P-9998CE

MODEL 204.0 /2 as of model year 2009 /YoM 08

MODEL 204.3

MODEL 204.9

Model 204.0/2/9, shown on model 204.0

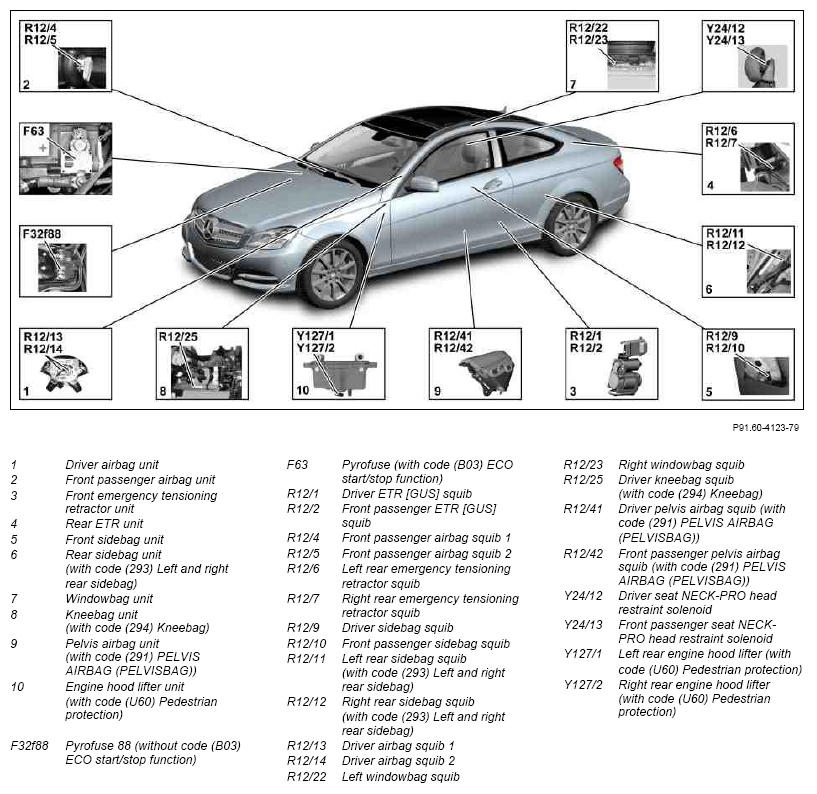

Fig 1: Identifying Supplemental Restraint System Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Model 204.0/2/9, shown on model 204.0

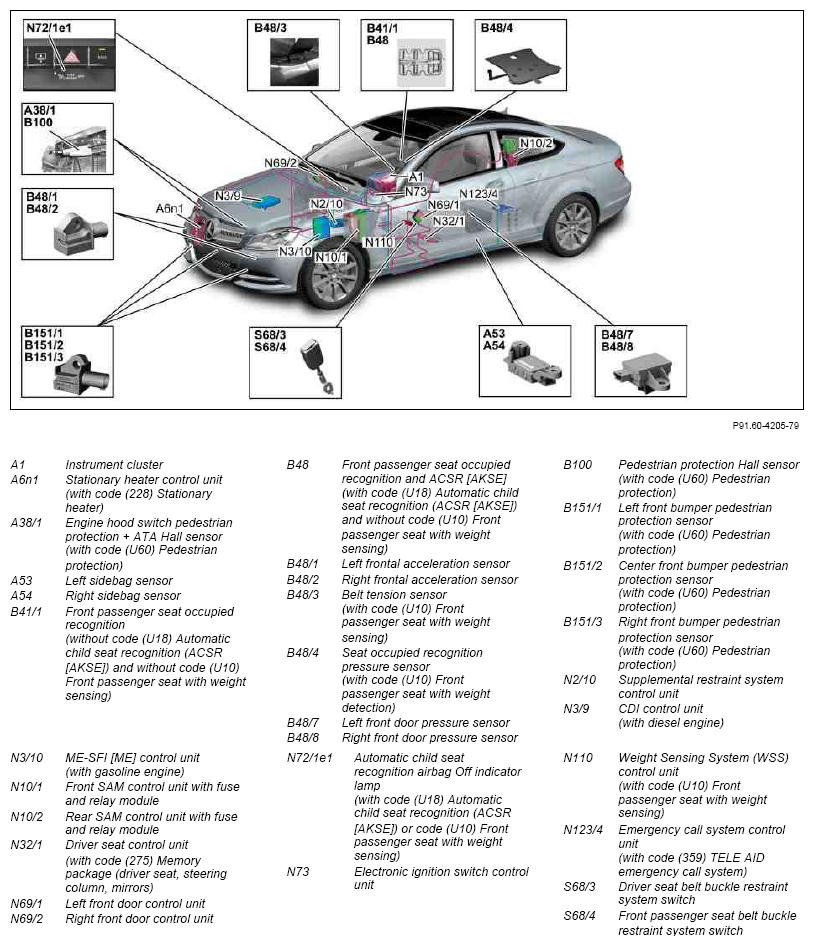

Fig 2: Identifying Supplemental Restraint System Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Model 204.3

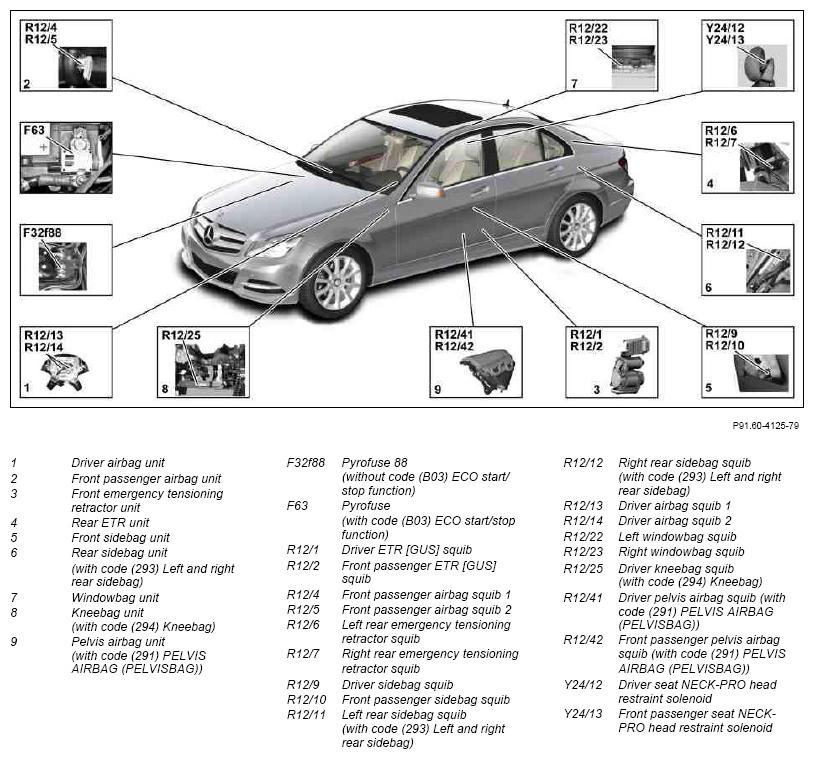

Fig 3: Identifying Supplemental Restraint System Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Model 204.3

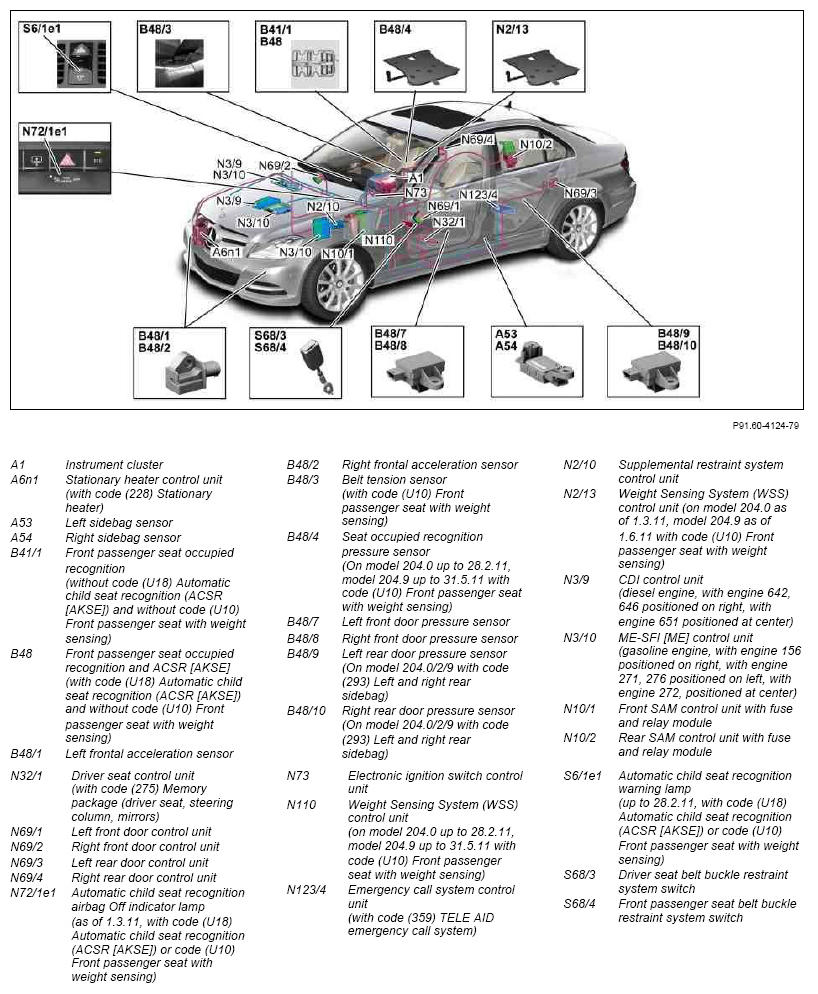

Fig 4: Identifying Supplemental Restraint System Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Component description for instrument cluster	A1	GF54.30-P-6000CE
Stationary heater control unit, component description	A6n1 With code (228) Stationary heater	GF83.70-P-4066CE
Component description for supplemental restraint system control unit	N2/10	GF91.60-P-4068CE
Component description for CDI control unit	N3/9 With engine 642.8 in model 204.0/2/9	GF07.16-P-6000OG
	With engine 642.9 in model 204.0/2/9	GF07.16-P-6000OH
	On engine 646.8 in model 204.0/2	GF07.16-P-6000OL
	With engine 651.9	GF07.16-P-6000OM
Component description for ME-SFI [ME] control unit	N3/10 With engine 156 in model 204.0/2	GF07.61-P-6000MAW
	With engine 271.8 in model 204.0/2/3	GF07.61-P-6000MG
	With engine 271.9 in model 204.0/2	GF07.61-P-6000MFW
	With engine 272.9 (except 272.982) in model 204.0/2/9	GF07.61-P-6000MI
	With engine 272.982 in model 204.0	GF07.61-P-6000MIE
	With engine 276.9	GF07.61-P-6000MM
Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070CE
Component description for rear SAM control unit with fuse and relay module	N10/2	GF54.21-P-6030CE
Component description for driver seat control unit	N32/1 With code (275) Memory package (driver seat, steering column, mirrors)	GF91.29-P-5231CE
Component description for left front door control unit	N69/1	GF72.29-P-6001CE
Component description for right front door control unit	N69/2	GF72.29-P-6009CE
Component description for rear door control unit	N69/3, N69/4	GF72.29-P-6021CE
Upper control panel control unit, component description	N72/1	GF54.21-P-6040CE
Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001CE
Component description for Weight Sensing System (WSS) control unit	N110 Model 204.0 up to 28.2.11, model 204.9 up to 31.5.11, model 204.3 with code (U10) Front passenger seat with weight sensing	GF91.60-P-4069CEU
Component description for emergency call system control unit	N123/4 With code (359) TELE AID emergency call system	GF82.95-P-3212CEU
Table of contents: Function description of supplemental restraint system (SRS)		GF91.60-P-0999CE
