Kneebag, component description - GF91.60-P-4056CW
MODEL 204.0 /2 except CODE (494) USA version except CODE (460) Canada version up to Model Year 8

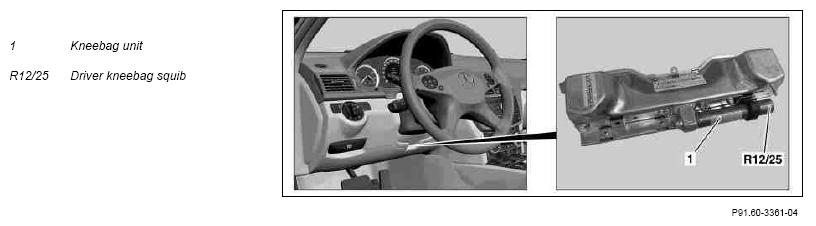

Illustrated on model 204.0
Location
The kneebag unit is located in the cover underneath the dashboard on the driver-side.
Task
The driver is protected from injury in the event of a frontal impact in the knee area by the kneebag unit.
Triggering is conducted by the supplemental restraint system control unit (N2/10) igniting the squib.
